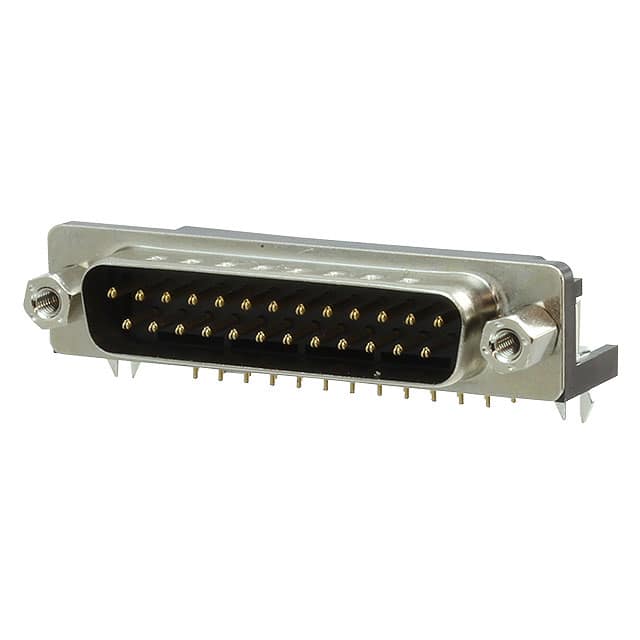

Conn D-Subminiature M 25POS 2.77mm Solder RA Thru-Hole 25 Terminal 1Port
Conn D-Subminiature M 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port
得捷:
CONN D-SUB PLUG 25POS R/A SOLDER
贸泽:
D-Sub Standard Connectors 25 POS 2.77mm Sldr RA Thru-Hole
艾睿:
Conn D-Subminiature M 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port
Allied Electronics:
Connector D-SUB PLUG 25POS R/A SOLDER
安富利:
Conn D-Subminiature PL 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port
Chip1Stop:
BACKSHELLS
Verical:
Conn D-Subminiature M 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port
Online Components:
Conn D-Subminiature M 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port
Electro Sonic:
Conn D-Subminiature M 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port
触点数 25
额定电流 3 A
绝缘电阻 1000 MΩ
排数 2
针脚数 25
拔插次数 100
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压Max 300 VAC
额定电压 300 V
工作电压Max 300 VAC
接触电阻Max 20 mΩ
安装方式 Through Hole
高度 12.55 mm
颜色 Black
触点材质 Brass
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
