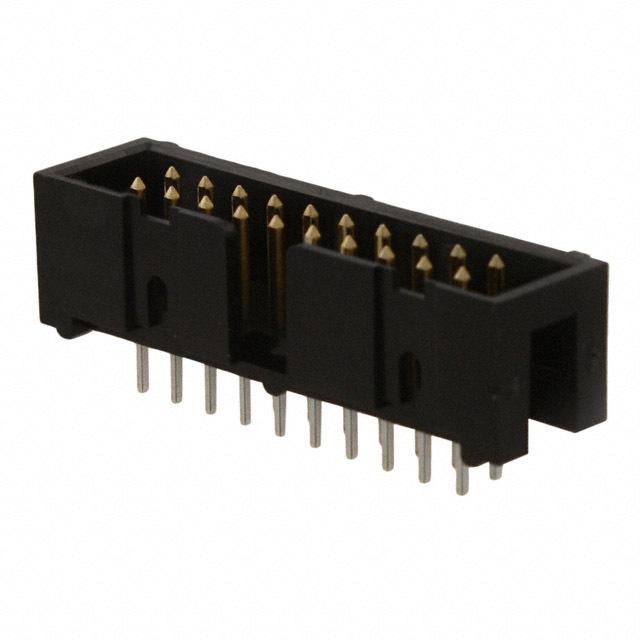

连接器 MIL BoxType Plug 20P Straight 1Polarize
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole
立创商城:
2.54mm 每排P数:10 排数:2
得捷:
CONN HEADER VERT 20POS 2.54MM
贸泽:
Headers & Wire Housings MIL BoxType Plug 20P Straight 1Polarize
e络盟:
线至板连接器, 公, 20路, 2.54MM
艾睿:
Reduce safety concerns with this shrouded XG4C-2031 header connector from Omron which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 1 A. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 32.7 mm long, 9 mm tall and 8.5 mm deep. XG4C-2031 is housed in black polybutylene terephthalate.
Allied Electronics:
Headers; MIL BoxType Plug 20P Straight 1Polarize
安富利:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole
Chip1Stop:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole
Newark:
# OMRON ELECTRONIC COMPONENTS XG4C-2031 Connector
MASTER:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole
Online Components:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole
Electro Sonic:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole
触点数 20
极性 Male
触点电镀 Gold
额定电流 3 A
绝缘电阻 >1000MΩ @500VDC
排数 2
针脚数 20
拔插次数 50
额定电流Max 1 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 300 V
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 Through Hole
长度 32.7 mm
宽度 8.5 mm
高度 9 mm
封装 Through Hole
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
XG4C-2031 Omron 欧姆龙 | 当前型号 | 当前型号 |
5103308-5 泰科 | 功能相似 | XG4C-2031和5103308-5的区别 |
5103309-5 泰科 | 功能相似 | XG4C-2031和5103309-5的区别 |
5104338-4 泰科 | 功能相似 | XG4C-2031和5104338-4的区别 |
