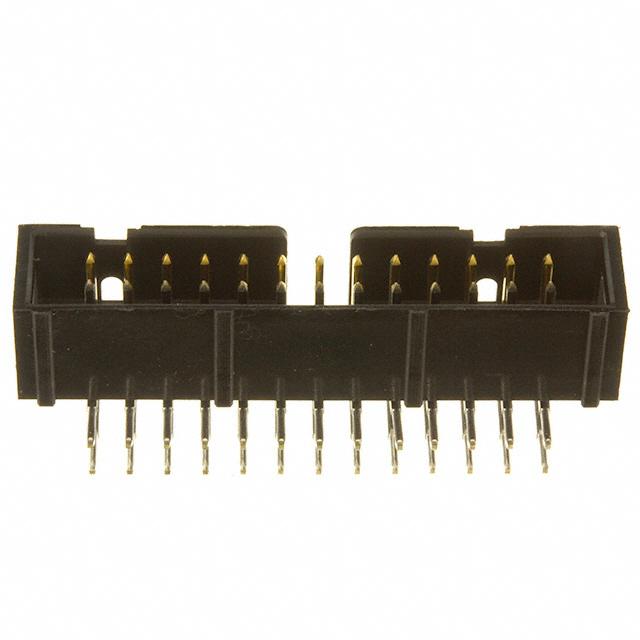

XG4C-2634

连接器 MIL BoxType Plug 26P RightAngle 1Polarize 盒装

针座 通孔，直角 26 位置 0.100"（2.54mm）

立创商城:
2.54mm 每排P数:13 排数:2

得捷:
CONN HEADER R/A 26POS 2.54MM

贸泽:
Headers & Wire Housings MIL BoxType Plug 26P RightAngle 1Polarize

艾睿:
Use this shrouded XG4C-2634 connector from Omron when board-to-board interconnects is required. This PL connector&s;s 26 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 300 VAC. This is a 2-row connector. Its pitch is 2.54 mm. It has a plug type gender. It has a right angle body orientation. This device has a maximum current rating of 3 A. XG4C-2634 is housed in black polybutylene terephthalate. It uses the solder termination method. This product is 40.3 mm long, 8.5 mm tall and 12.2 mm deep. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
Headers; MIL BoxType Plug 26P RightAngle 1Polarize

Chip1Stop:
Conn Shrouded Header PL 26 POS 2.54mm Solder RA Thru-Hole

Newark:
# OMRON ELECTRONIC COMPONENTS  XG4C-2634  Wire-To-Board Connector, 2.54 mm, 26 Contacts, Header, XG4 Series, Through Hole, 2 Rows

MASTER:
Conn Shrouded Header PL 26 POS 2.54mm Solder RA Thru-Hole

Online Components:
Conn Shrouded Header PL 26 POS 2.54mm Solder RA Thru-Hole

Electro Sonic:
Conn Shrouded Header PL 26 POS 2.54mm Solder RA Thru-Hole

Win Source:
CONN HEADER R/A 26POS 2.54MM / Connector Header Through Hole, Right Angle 26 position 0.100" 2.54mm
