Conn Socket Strip SKT 30POS 2.54mm Solder ST Thru-Hole
30 Position Receptacle Connector Through Hole
得捷:
CONN RCPT 30POS 0.1 GOLD PCB
贸泽:
Headers & Wire Housings BtoB Socket 30Pin Straight 1Polarize
艾睿:
Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole
Allied Electronics:
Connector SOCKET 30POS STRAIGHT PCB
Chip1Stop:
Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole
Electro Sonic:
Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole
触点数 30
额定电流 3 A
绝缘电阻 1000 MΩ
排数 2
针脚数 30
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 300 VAC
额定电压 300 V
接触电阻Max 20 mΩ
安装方式 Through Hole

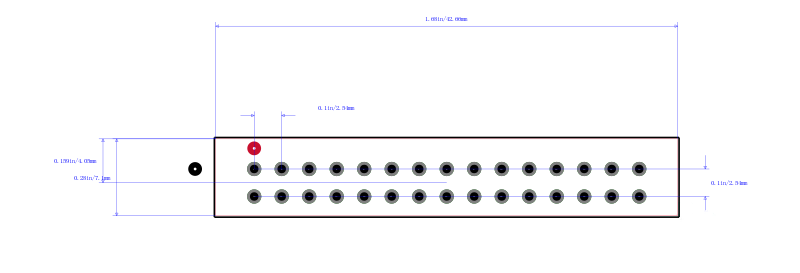

长度 42.7 mm
宽度 7.1 mm
高度 7.2 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
