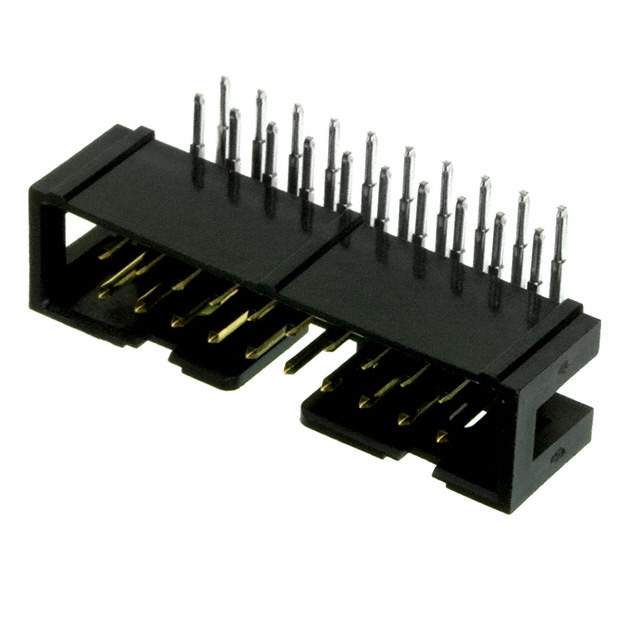

XG4C-2034

连接器 MIL BoxType Plug 20P RightAngle 1Polarize 盒装

针座 通孔，直角 20 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 20POS 2.54MM

立创商城:
2.54mm 每排P数:10 排数:2

艾睿:
Make strong and binding connections on your circuit boards by adopting this shrouded XG4C-2034 connector from Omron. This PL connector&s;s 20 contacts that are made out of brass and plated with gold over nickel. It has a plug type gender. It has a right angle body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 300 VAC. This is a 2-row connector. This device has a maximum current rating of 3 A. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 32.7 mm long, 8.5 mm tall and 12.2 mm deep. XG4C-2034 is housed in black glass reinforced polybutylene terephthalate.

Allied Electronics:
Headers; MIL BoxType Plug 20P RightAngle 1Polarize

Chip1Stop:
Conn Shrouded Header PL 20 POS 2.54mm Solder RA Thru-Hole

Newark:
# OMRON ELECTRONIC COMPONENTS  XG4C-2034  Connector

MASTER:
Conn Shrouded Header PL 20 POS 2.54mm Solder RA Thru-Hole

Online Components:
Conn Shrouded Header PL 20 POS 2.54mm Solder RA Thru-Hole

Electro Sonic:
Conn Shrouded Header PL 20 POS 2.54mm Solder RA Thru-Hole

Win Source:
CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" 2.54mm
