2.54mm 每排P数:17 排数:2
34 位置矩形连 插座 IDC 镀金 28AWG
得捷:
CONN RCPT 34POS IDC 28AWG GOLD
立创商城:
2.54mm 每排P数:17 排数:2
艾睿:

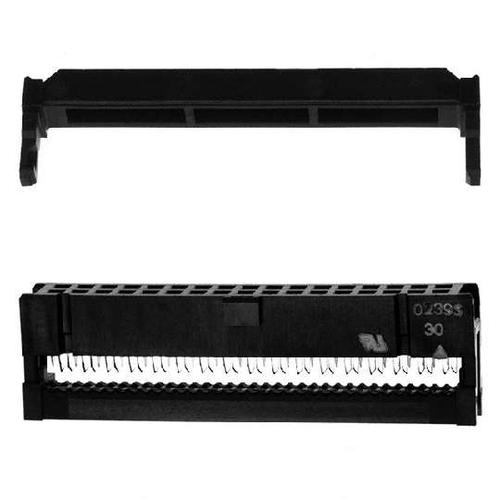

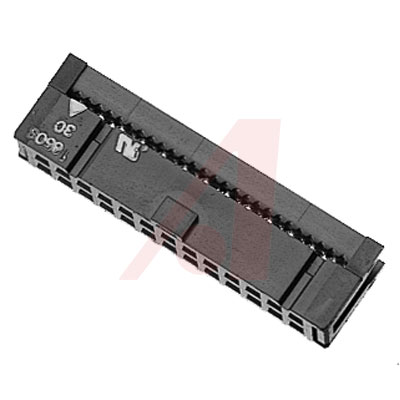

Look no further than the idc connector XG4M-3430-T header connector from Omron, a great tool to use when board-to-board interconnects is required. This SKT connector&s;s 34 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. It has a socket type gender. This is a 2-row connector. This device has a maximum current rating of 1 A. This product is 16.1 mm tall. It uses the idt termination method. XG4M-3430-T is housed in black polybutylene terephthalate. This connector has an operating temperature of -55 to 105 °C.
Allied Electronics:
Headers; Socket+StrainRelief Set 34Pin 1Polar
Chip1Stop:
Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount
Newark:
# OMRON ELECTRONIC COMPONENTS XG4M-3430-T Flat Cable Connector
MASTER:
Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount
Online Components:
Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount
Electro Sonic:
Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount
Win Source:
CONN RCPT 34POS IDC 28AWG GOLD / 34 Position Rectangular Receptacle Connector IDC Gold 28 AWG
触点数 34
极性 Female
线规 28 AWG
触点电镀 Gold
绝缘电阻 >1000MΩ @500VDC
排数 2
针脚数 34
拔插次数 50
额定电流Max 1 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 20 mΩ
封装 -
长度 47.7 mm
高度 16.1 mm
封装 -
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
