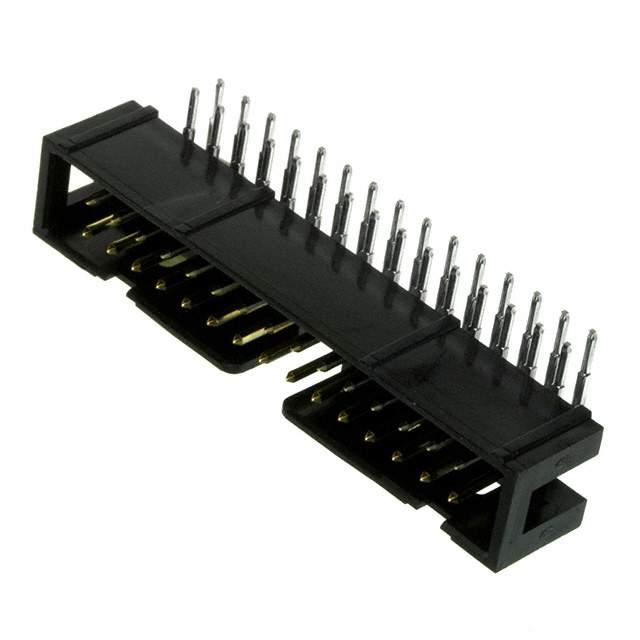

XG4C-3034

集管和线壳 MIL BoxType Plug 30P RightAngle 1Polarize

针座 通孔，直角 30 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 30POS 2.54MM

贸泽:
集管和线壳 MIL BoxType Plug 30P RightAngle 1Polarize

艾睿:
Safety is an important concern when designing electronic devices. Omron&s;s shrouded XG4C-3034 header connector helps protect your equipment from accidental shortages. This PL connector&s;s 30 contacts that are made out of brass and plated with gold over nickel. It has a plug type gender. It has a maximum voltage rating of 300 VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a right angle body orientation. This device has a maximum current rating of 3 A. XG4C-3034 is housed in black polybutylene terephthalate. This connector has an operating temperature of -55 to 105 °C. This product is 45.4 mm long, 8.5 mm tall and 12.2 mm deep. It uses the solder termination method.

Allied Electronics:
Connector PLUG 30POS 3A RT ANGL DIP

Chip1Stop:
Conn Shrouded Header PL 30 POS 2.54mm Solder RA Thru-Hole

Newark:
# OMRON ELECTRONIC COMPONENTS  XG4C-3034  Wire-To-Board Connector, 2.54 mm, 30 Contacts, Header, XG4 Series, Through Hole, 2 Rows

MASTER:
Conn Shrouded Header PL 30 POS 2.54mm Solder RA Thru-Hole

Online Components:
Conn Shrouded Header PL 30 POS 2.54mm Solder RA Thru-Hole

Electro Sonic:
Conn Shrouded Header PL 30 POS 2.54mm Solder RA Thru-Hole

Win Source:
CONN HEADER R/A 30POS 2.54MM / Connector Header Through Hole, Right Angle 30 position 0.100" 2.54mm
