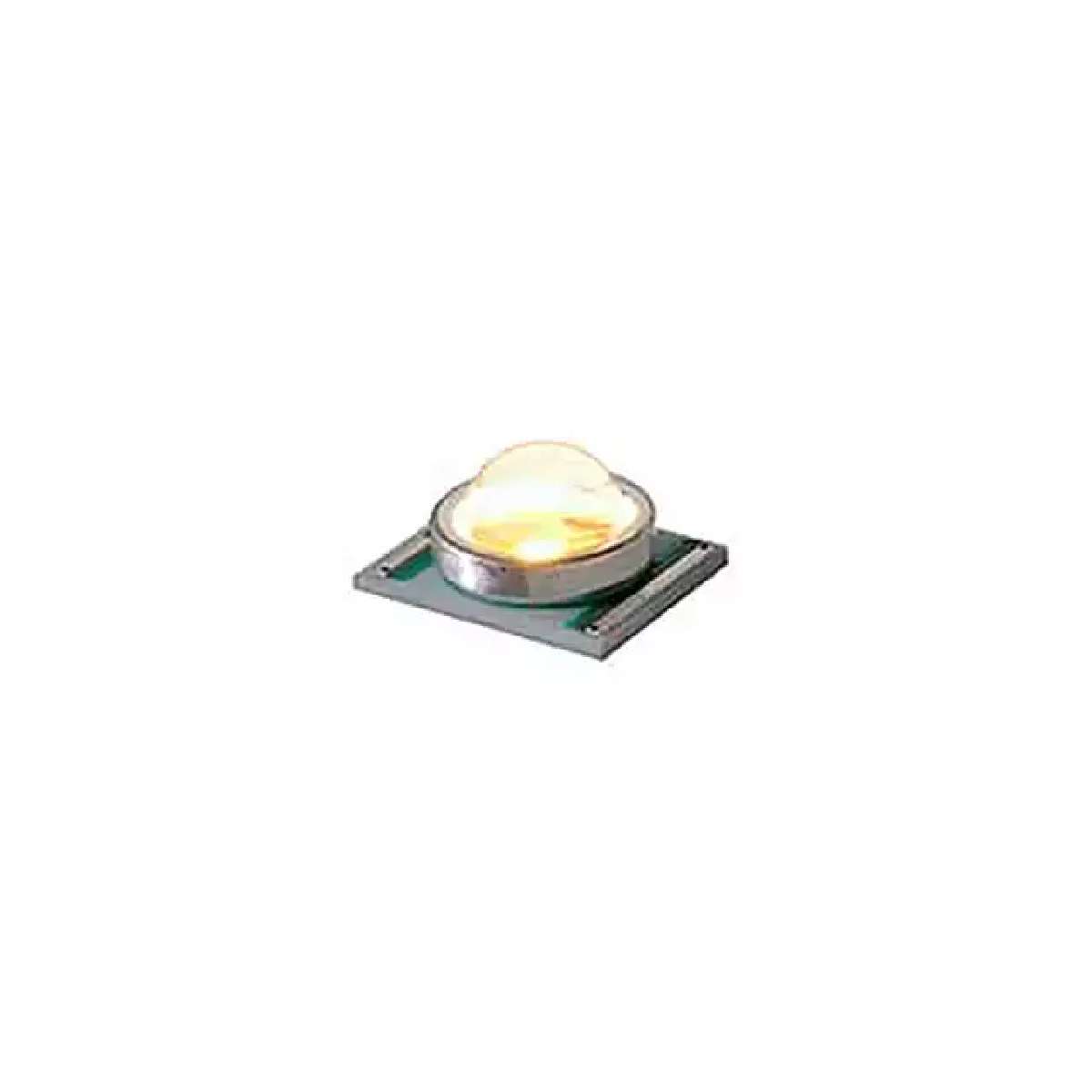

LED Uni-Color Red Orange 2Pin SMD EP T/R
Lighting Color XLamp® XR-C Red-Orange 613nm 610nm ~ 615nm 3529 9073 Metric
得捷: LED XRC 620NM RED/ORN 39.8LM SMD
艾睿: LED Uni-Color Red Orange 2-Pin SMD EP T/R
Verical: XRCRDO-L1-R250-00M02
额定功率 2 W
正向电压 2.2 V
波长 613nm 610nm ~ 615nm
视角 90°
热阻 15 ℃/W
测试电流 350 mA
正向电流 350 mA
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 9 mm
宽度 7 mm
高度 4.4 mm
颜色 Red
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
数据手册
