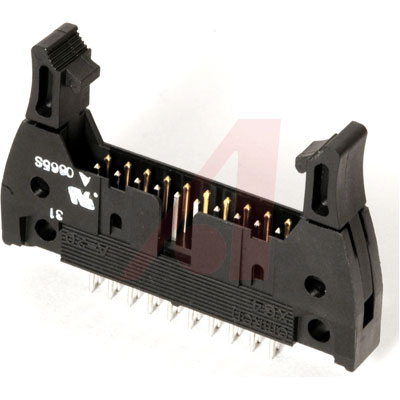

CONN PLUG 10POS 3A RT ANGL DIP
Conn Ejector Header PL 10 POS 2.54mm Solder RA Thru-Hole
得捷:
CONN HEADER R/A 10POS 2.54MM
艾睿:
Conn Ejector Header PL 10 POS 2.54mm Solder RA Thru-Hole
Allied Electronics:
Flat Cable Connector
Chip1Stop:
Conn Ejector Header PL 10 POS 2.54mm Solder RA Thru-Hole
MASTER:
Conn Ejector Header PL 10 POS 2.54mm Solder RA Thru-Hole
Online Components:
Conn Ejector Header PL 10 POS 2.54mm Solder RA Thru-Hole
Electro Sonic:
Conn Ejector Header PL 10 POS 2.54mm Solder RA Thru-Hole
Win Source:
CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" 2.54mm
触点数 10
额定电流 3 A
绝缘电阻 >1000MΩ @500VDC
排数 2
针脚数 10
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 300 VAC
额定电压 300 V
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 32 mm
宽度 23.3 mm
高度 8.5 mm
颜色 Black
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
