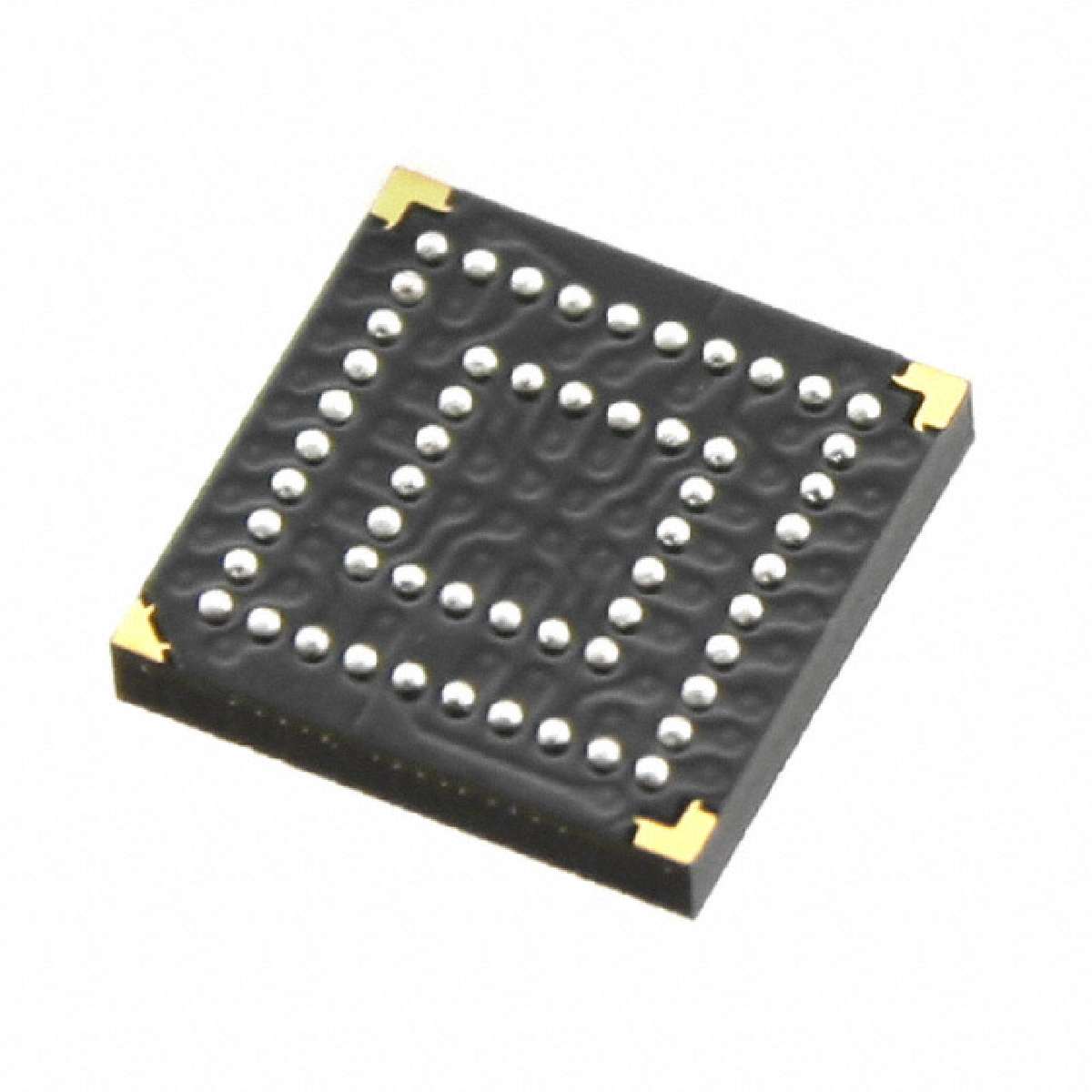

XC2C64A-7CP56C

CPLD CoolRunner -II Family 1.5K Gates 64 Macro Cells 159MHz 0.18um CMOS Technology 1.8V 56Pin CSBGA

* Optimized for 1.8V systems * As fast as 4.6 ns pin-to-pin logic delays * As low as 15 μA quiescent current * Industry’s best 0.18 micron CMOS CPLD * Optimized architecture for effective logic synthesis * Multi-voltage I/O operation — 1.5V to 3.3V * Available in multiple package options * 44-pin VQFP with 33 user I/Os * 48-land QFN with 37 user I/Os * 56-ball CP BGA with 45 user I/Os * 100-pin VQFP with 64 user I/Os * Pb-free available for all packages * Advanced system features * Fastest in system programming · 1.8V ISP using IEEE 1532 JTAG interface * IEEE1149.1 JTAG Boundary Scan Test * Optional Schmitt-trigger input per pin * Two separate I/O banks * RealDigital 100% CMOS product term generation * Flexible clocking modes · Optional DualEDGE triggered registers * Global signal options with macrocell control · Multiple global clocks with phase selection per macrocell · Multiple global output enables · Global set/reset * Efficient control term clocks, output enables, and set/resets for each macrocell and shared across function blocks * Advanced design security * Optional bus-hold, 3-state, or weak pullup on selected I/O pins * Open-drain output option for Wired-OR and LED drive * Optional configurable grounds on unused I/Os * Mixed I/O voltages compatible with 1.5V, 1.8V, 2.5V, and 3.3V logic levels * PLA architecture · Superior pinout retention · 100% product term routability across function block * Hot pluggable
