XCSDMR7902

型号： XCSDMR7902

制造商： Telemecanique

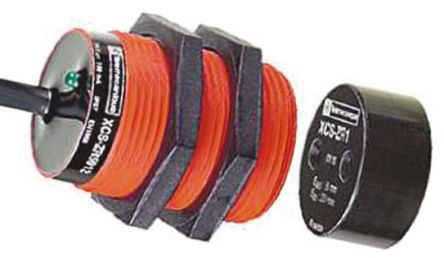

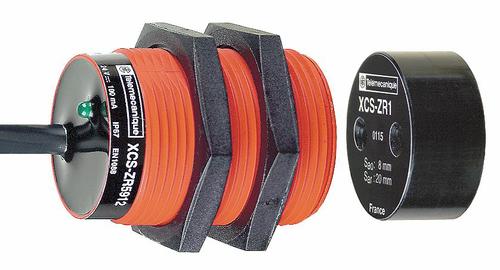

描述：XCS-DMR Coded Magnetic Safety Switches, Cylindrical The Schneider XCS-DMR coded magnetic safety switches are designed for monitoring the doors, covers and guards of industrial machines with imprecise guiding and low inertia. These safety switches are ideally suited for machines subjected to frequent washing or liquid spray. They protect the operator by immediately stopping any dangerous movement as soon as the distance between the switch and its magnet is greater than 8mm. 1 approach direction 8mm tolerance to misalignment LED versions have an LED in series with one N/C giving indication when guard is closed Coded reed technology - switch cannot be totally defeated by a simple magnet Cylindrical plastic housing Dimensions: Ø30 x 38.5mm Available pre-cabled or with connector on flying lead IP66/67 protection in accordance with EN/IEC 60529 ROHS compliant ### 注 With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849
