XY2CE3A010H7

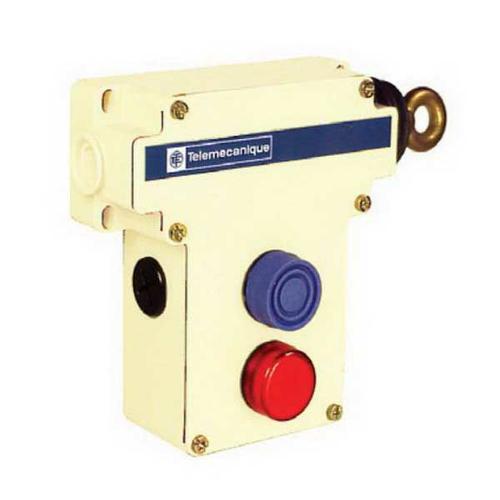

"Schneider Electric / Square D XY2CE3A010H7 Type XY Cable Pull Switch 1 NO, 1NC, 10A, 24 - 380V, "

The Preventa XY2 Cable Pull Switches enable an emergency stop to be signaled at any point along a cable up to 165 feet in length. Simple to operate and install, these cost-effective cable pull switches provide quick access to shut off equipment across wide areas. Available in two confi gurations, XY2 switches can provide emergency stop operation, where switch actuation locks the contacts in the open position and require manual reset, or normal stop operation, for momentary, non-emergency system stoppage. All switches meet all the requirements of ISO 13850, relating to Emergency Stop devices and meet United States standards as well.

.

*

Features

XY2-CE

* **165 foot maximum cable length**

* **Adjustable tripping force**

* **Available with multiple contact solutions**

XY2-CH

* **50 foot maximum cable length**

* **Two viewing windows to aid in adjusting the switch**

* **Manual tripping force adjustment**

* **Adjustment and Traction force indicators
