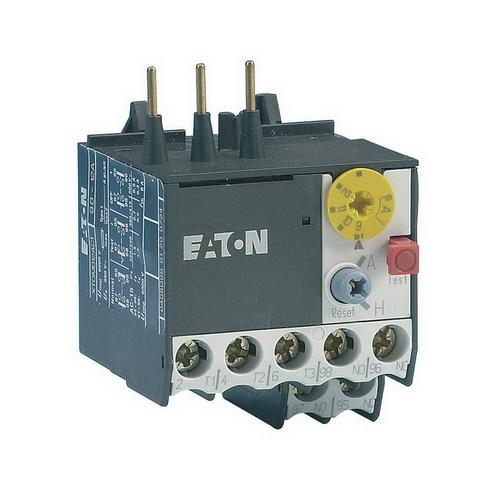

EATON CUTLER HAMMER XTOMP40AC1 Electronic Overload Controller, Mini, 240mA, 400mA, 220V
Eaton"s new line of Cutler-Hammer® XT Miniature Controls includes nonreversing and reversing mini contactors, mini overload relays and snap-on accessories. A wide range of applications is possible including small electrical motors from fractional to 5 HP 460 VAC or up to 4 kW 400 VAC.
**Application Description
**
Due to its compact size, the XT line of mini controls is best suited to be applied in light duty loads such as hoisting, packaging, material handling, heating, lighting and automation systems. XT mini contactors are a particularly compact, economic and environmentally friendly solution wherever control of small motors or loads is required.
**Features:**
* Phase Failure Sensitivity
* Direct Mount to XTMC Mini Contactors
* Trip Class 10
* 9 Settings to Cover 0.24-12 A
* Life
Mechanical — Up to 20 Million Operations
Electrical — Up to 750,000 Operations
* Ambient Temperature Compensated –5°-50°C 23°-122°F
* Manual and Automatic Reset By Selector Switch
* 1 Make NO or 1 Break NC Auxiliary Contact as Standard
* Test/Off Button
* Trip-Free Release
