XC6201P502MR

XC6201P502MR LDO电压调整器/稳压电源IC 5V 400mV/0.4V SOT-153/SOT-25/SOT23-5 marking/标记 16M4 短路保护 过热保护

■ GENERAL DESCRIPTION

The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies.

The series provides large currents with a significantly small dropout voltage.

The XC6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between 1.3V ~ 6.0V.

SOT-25, SOT-89, USP-6B and TO-92 packages are available.

■ FEATURES

  Maximum Output Current : 250mA TYP.

  Dropout Voltage : 0.16V @ 100mA

                         : 0.40V @ 200mA

  Maximum Operating Voltage : 10V

  Output Voltage Range : 1.3V ~ 6.0V 0.1V increments

  Fixed Voltage Accuracy : ± 1% VOUTT>2.0V

                                   ± 2%

  Low Power Consumption : 2.0μ A TYP.

  Operational Temperature Range : -40℃ ~ 85℃

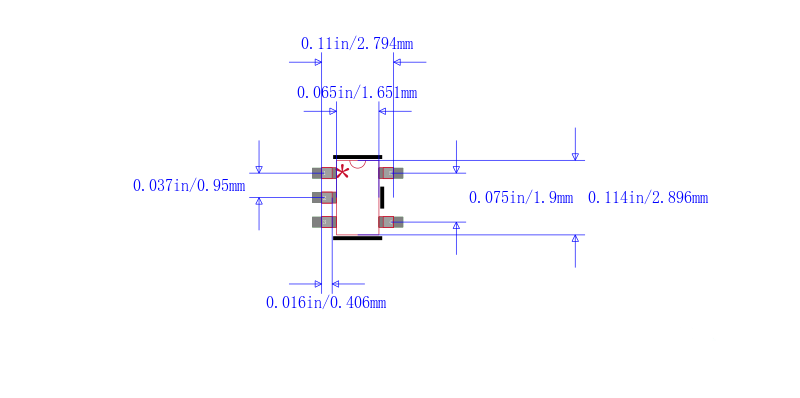

  Packages : SOT-25,

                 SOT-89

                 TO-92

                 USP-6B

  Environmentally Friendly : EU RoHS Compliant, Pb Free

  Tantalum or Ceramic Capacitor compatible

■ APPLICATIONS

● Mobile Phones

● Cordless phones, wireless communication equipment

● Cameras, video recorders

● Portable games

● Portable AV equipment

● Reference voltage

● Battery powered equipment
