Y07061K00000T9L

VISHAY FOIL RESISTORS  Y07061K00000T9L  通孔电阻器, VAR系列, 1 kohm, 400 mW, ± 0.01%, 200 V, 径向引线

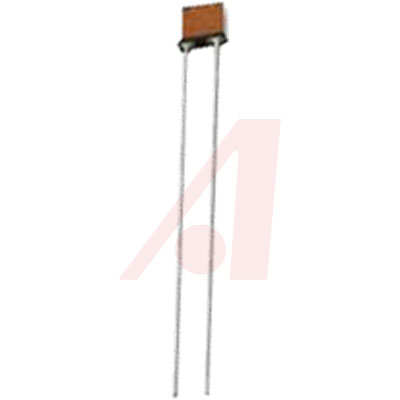

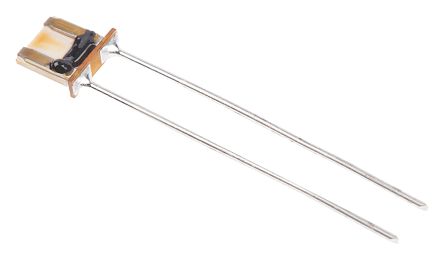

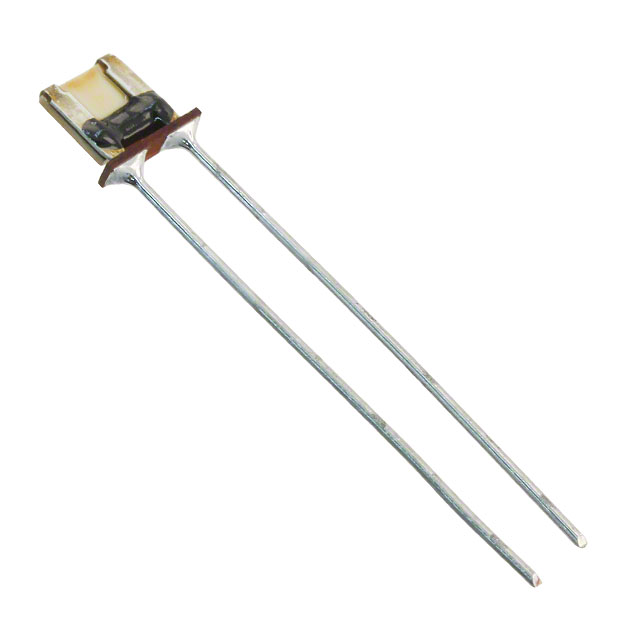

The is a 1kR 400mW through-hole mounting ultra high precision Z-Foil Audio Resistor with standard lead Pb-free termination. The resistor features metal foil element, minimizes noise and distortion in the signal path. High-end analogue audio applications require low intrinsic noise, high linearity of amplification and minimal dynamic distortion. Bulk Metal® Z-foil technology with improved sound quality provides a combination of low noise and low inductance/capacitance and making it unrivalled for applications requiring low noise and distortion-free properties.

.

Electrostatic discharge ESD at least to 25000V

.

Non-inductive and non-capacitive design

.

Rise time - 1ns effectively no ringing

.

Lead terminal finish

.

<0.08µH Typical low inductance

ESD sensitive device, take proper precaution while handling the device.
