Y162520K0000T9R

VISHAY FOIL RESISTORS  Y162520K0000T9R  片式电阻器, 表面贴装, 金属膜, SMR1D Series, 20 kohm, 77.4 V, 1206 [3216公制], 300 mW, ± 0.01%

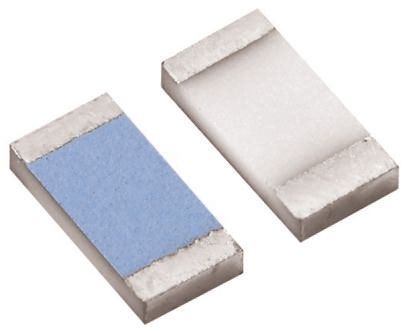

The is a 20kR 300mW surface-mounting ultra high precision Chip Resistor with lead Pb-free termination and metal foil element. This is the first device to provide high rated power and excellent load life stability along with extremely low TCR all in one resistor. One of the most important parameters influencing stability is the temperature coefficient of resistance TCR. Although, the TCR of foil resistor is considered extremely low and this characteristic has been further refined over the years. The VSMP series utilizes ultra high precision Bulk Metal® Z-foil. The Z-foil technology provides a significant reduction of the resistive elements sensitivity to ambient temperature variations TCR and to self heating when power is applied. Along with the inherently low PCR and TCR, Z-foil technology also provides remarkably improved load life stability, low noise and availability of tight tolerance.

.

Electrostatic discharge ESD at least to 25000V

.

Non-inductive and non-capacitive design

.

Non hot spot design

ESD sensitive device, take proper precaution while handling the device.
