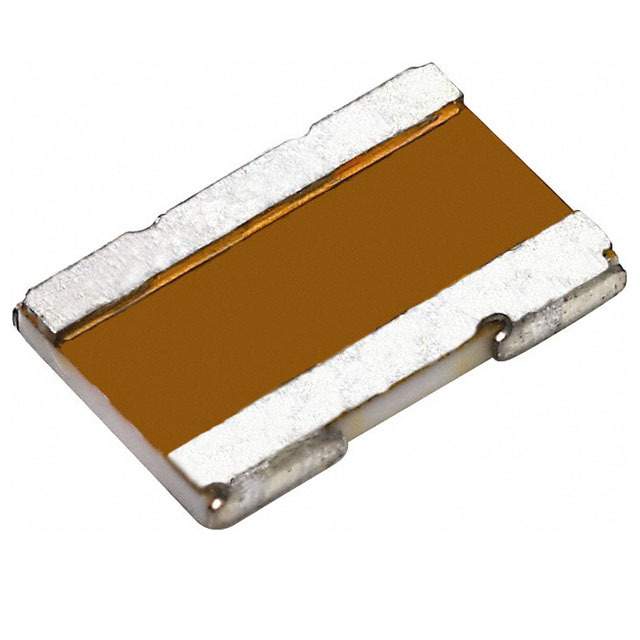

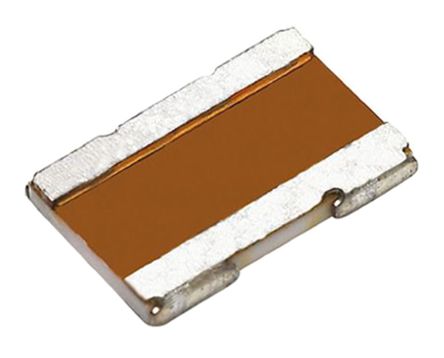

VISHAY FOIL RESISTORS Y08500R10000F9R 电流感应电阻器, 表面安装, VCS1625系列, 0.1 ohm, 500 mW, ± 1%, 2516 [6440 Metric]

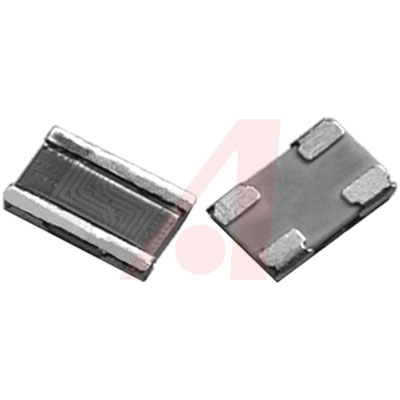

Model VCS1625 is a surface mount resistor designed with 4 pads for Kelvin connection. Utilizing Vishay Bulk Metal® foil as the resistance element, it provides performance capabilities far greater than other resistor technologies can supply in a product of comparable size. This small device dissipates heat almost entirely through the pads so surface mount users are encouraged to be generous with the board"s pads and traces. Gold terminations are available on special order.
Allied Electronics:
RESISTOR; FOIL ; CURRENT SENSE; .10 OHM; 1%
Newark:
# VISHAY FOIL RESISTORS Y08500R10000F9R SMD Current Sense Resistors, VCS1625 Series, 0.1 ohm, 500 mW, - 1%, 2516 [6440 Metric]
容差 ±1 %
额定功率 500 mW
电阻 0.1 Ω
阻值偏差 ±1 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 SMD
长度 6.35 mm
高度 1.02 mm
封装 SMD
工作温度 -55℃ ~ 150℃
温度系数 ±15 ppm/℃
包装方式 Cut Tape CT
制造应用 Medical, Test & Measurement, Consumer Electronics, Sensing & Instrumentation, Defence, Imaging, Video & Vision, Industrial, Aerospace, Military
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
