YAGEO YC164-JR-0775RL 电阻阵列, 隔离式, 4X, 75Ω, 5%, SMD
器网络与阵列
得捷:
RES ARRAY 4 RES 75 OHM 1206
立创商城:
75Ω ±5% 0603x4
e络盟:

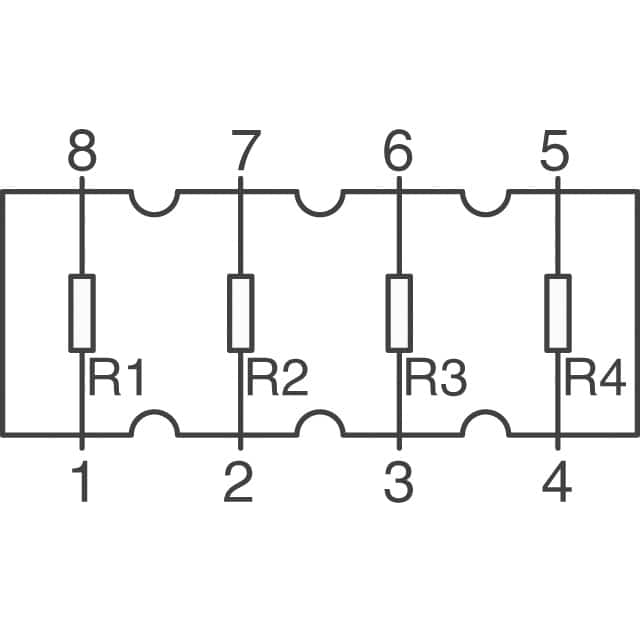

电阻阵列, 隔离式, 4X, 75Ω, 5%, SMD
艾睿:

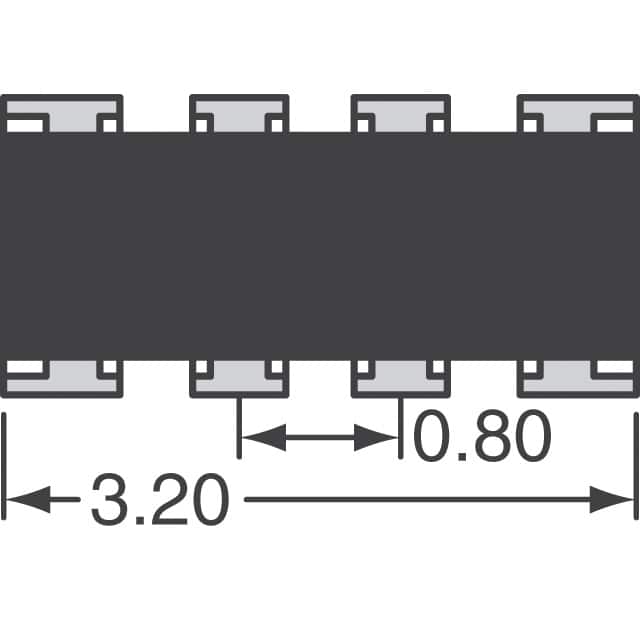

By combining multiple resistors into a single chip, the YC164-JR-0775RL resistor array, developed by Yageo, can help you save space and power in your circuit design. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 75 Ohm. It has 8 terminals. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. It has a tolerance of 5%. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This product&s;s terminal pitch is 0.8 mm. The YC164-JR-0775RL part has a convex termination style.
Chip1Stop:
Res Thick Film Array 75 Ohm 5% 200ppm/ C ISOL Molded 8-Pin 12064 X 0603 Convex SMD Paper T/R
Verical:
Res Thick Film Array 75 Ohm 5% ±200ppm/C ISOL Epoxy 8-Pin 12064 X 0603 Convex SMD Automotive T/R
Newark:
# YAGEO YC164-JR-0775RL Fixed Network Resistor, Isolated, 75 ohm, 50 V, 4 Elements, Isolated, 0603 [1608 Metric], 62.5 mW
儒卓力:
**CN1206R4 75R 5% 0,063W CONVEX **
Win Source:
RES ARRAY 4 RES 75 OHM 1206
触点数 8
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.063 W
电路数 4
针脚数 8
耗散功率 0.063 W
产品系列 YC
电阻 75 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 8
封装 0603
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 DDRAM,SDRAM
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
YC164-JR-0775RL Yageo 国巨 | 当前型号 | 当前型号 |
CRC3A4E750JT 艾维克斯 | 类似代替 | YC164-JR-0775RL和CRC3A4E750JT的区别 |
CAY16-750J4LF 伯恩斯 | 功能相似 | YC164-JR-0775RL和CAY16-750J4LF的区别 |
