Y08501R00000B9R

VISHAY FOIL RESISTORS  Y08501R00000B9R  电流感应电阻器, 表面安装, VCS1625系列, 1 ohm, 500 mW, ± 0.1%, 2615 [6638公制]

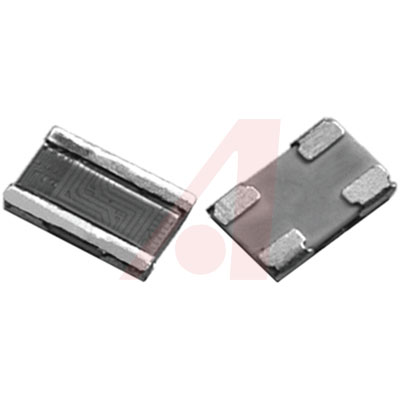

The is a 1R 500mW SMD high precision current sensing Chip Resistor with standard lead Pb-free termination. The chip resistor is designed with 4 pads for Kelvin connection. Utilizing Vishay Bulk Metal® foil as the resistance element and it provides performance capabilities far greater than other resistor technologies can supply in a product of comparable size. This small device dissipates heat almost entirely through the pads so surface mount users are encouraged to be generous with the board"s pads and traces.

.

Electrostatic discharge ESD at least to 25000V

.

Non-inductive and non-capacitive design

.

Non hot spot design

.

Rise time - 1ns effectively no ringing

.

<0.08µH Typical low inductance

ESD sensitive device, take proper precaution while handling the device.
