电阻器网络与阵列
器网络与阵列
得捷:

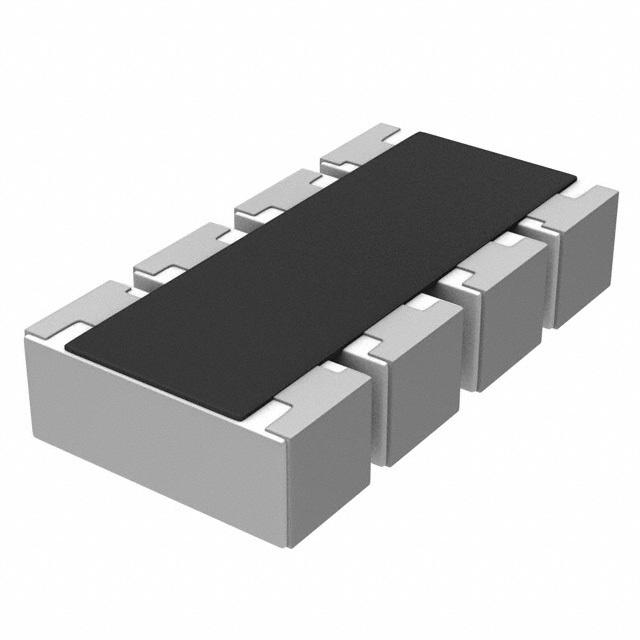

RES ARRAY 4 RES 1.5K OHM 1206
立创商城:
1.5kΩ ±5%
艾睿:
Pack multiple resistors into a single chip with this YC164-JR-071K5L resistor array from Yageo. This product&s;s 4 resistors have a value of 1.5K Ohm. This dependable part has a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. The YC164-JR-071K5L part has a convex termination style. It has a tolerance of 5%. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This product&s;s terminal pitch is 0.8 mm.
Chip1Stop:
Res Thick Film Array 1.5K Ohm 5% 200ppm/ C ISOL Molded 8-Pin 12064 X 0603 Convex SMD Paper T/R
TME:
Resistor network: Y; 1.5kΩ; SMD; 1206; No.of resistors:4; 63mW; ±5%
儒卓力:
**CN1206R4 1,5K 5% 0,063W CONVEX **
触点数 8
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.063 W
电路数 4
耗散功率 0.063 W
产品系列 YC
电阻 1.5 kΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 8
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 DDRAM,SDRAM
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
YC164-JR-071K5L Yageo 国巨 | 当前型号 | 当前型号 |
CRC3A4E152JT 艾维克斯 | 完全替代 | YC164-JR-071K5L和CRC3A4E152JT的区别 |
