YC124 系列 4 元件 51 ohm 5 % 外壳 4 x 0402 SMD 贴片电阻网络
器网络与阵列
得捷:
RES ARRAY 4 RES 51 OHM 0804
立创商城:
51Ω ±5%
贸泽:
Resistor Networks & Arrays 51 Ohm 5% 1/16W 50 Volts
艾睿:
If you&s;re looking to conserve space in your circuit design, then this YC124-JR-0751RL resistor array from Yageo will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 51 Ohm. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. The YC124-JR-0751RL part has a convex termination style. It has a tolerance of 5%. This product is 2 mm long, 0.45 mm tall and 1 mm deep. This product&s;s terminal pitch is 0.5 mm. This device is made with thick film technology.
TME:
Resistor network: Y; 51Ω; SMD; 0804; No.of resistors:4; 63mW; ±5%
儒卓力:
**CN0804R4 51R 5% 0,063W CONVEX **
触点数 8
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.063 W
电路数 4
耗散功率 0.063 W
产品系列 YC
电阻 51 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 8
封装 0804

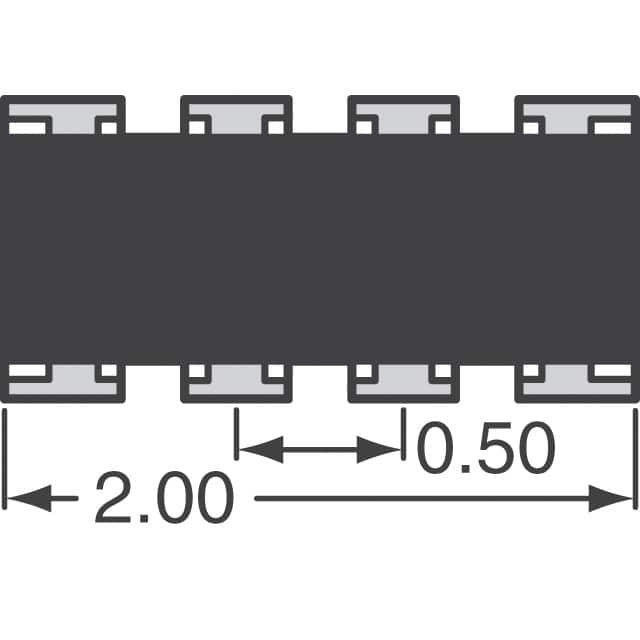

长度 2 mm
宽度 1 mm
高度 0.45 mm
封装 0804
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 DDRAM,SDRAM
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
