YC164 系列 4 元件 130 Ω ±5% 0603 x 4 贴片电阻 阵列
器网络与阵列
得捷:
RES ARRAY 4 RES 130 OHM 1206
艾睿:

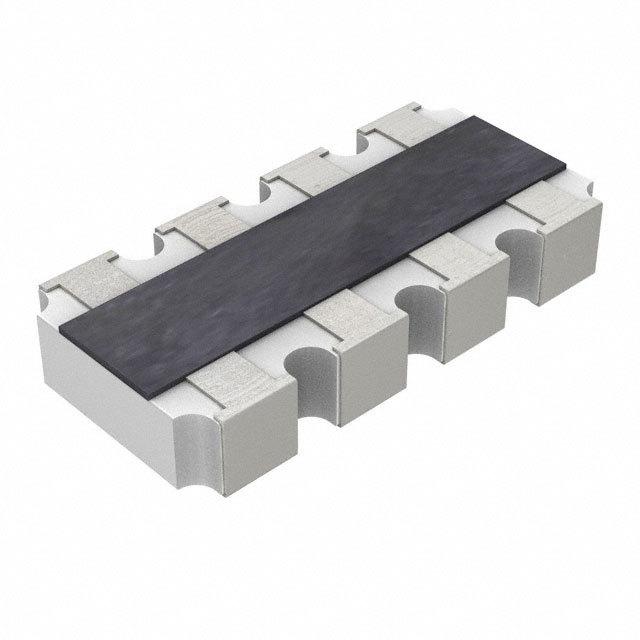

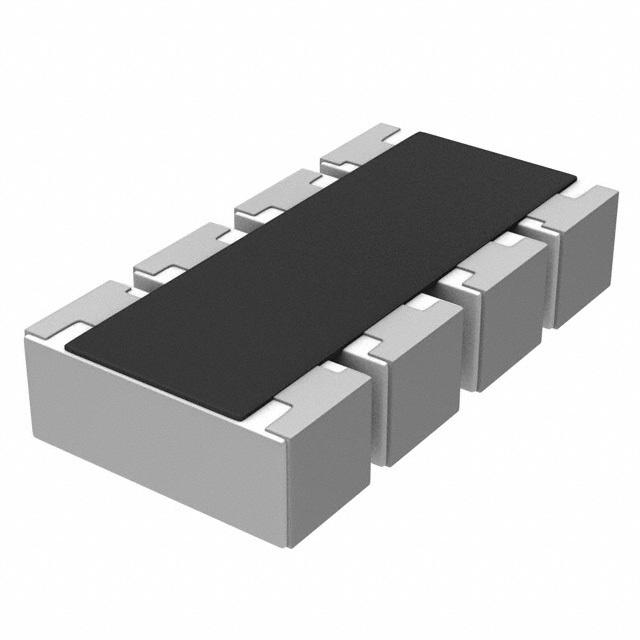

Downsize multiple resistors onto a single chip with the YC164-JR-07130RL resistor array, developed by Yageo. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 130 Ohm. It has 8 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This product&s;s terminal pitch is 0.8 mm. This device is made with thick film technology. It has a tolerance of 5%. The YC164-JR-07130RL part has a convex termination style. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep.
安富利:
Res Thick Film Array 130 Ohm 5% ±200ppm/°C ISOL Molded 8-Pin 12064 X 0603 Convex SMD Paper T/R
Chip1Stop:
Res Thick Film Array 130 Ohm 5% ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R
Verical:
Res Thick Film Array 130 Ohm 5% ±200ppm/C ISOL Epoxy 8-Pin 12064 X 0603 Convex SMD T/R
触点数 8
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.0625 W
电路数 4
耗散功率 0.063 W
产品系列 YC
电阻 130 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 DDRAM,SDRAM
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
YC164-JR-07130RL Yageo 国巨 | 当前型号 | 当前型号 |
CRC3A4E131JT 艾维克斯 | 完全替代 | YC164-JR-07130RL和CRC3A4E131JT的区别 |
