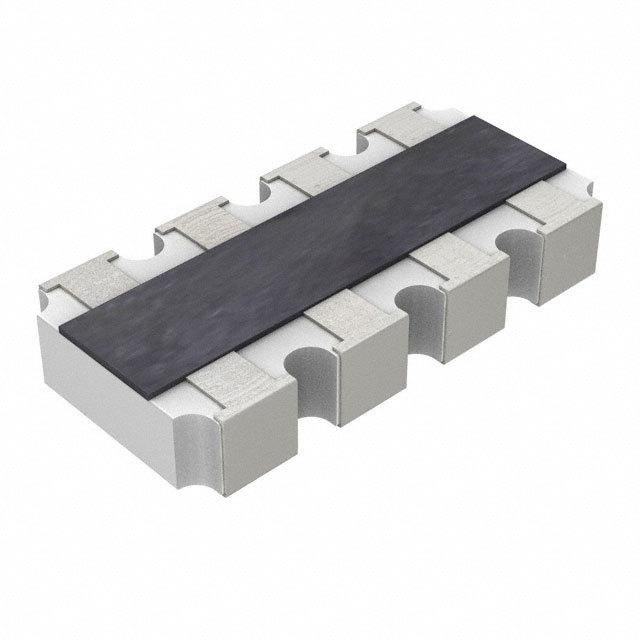

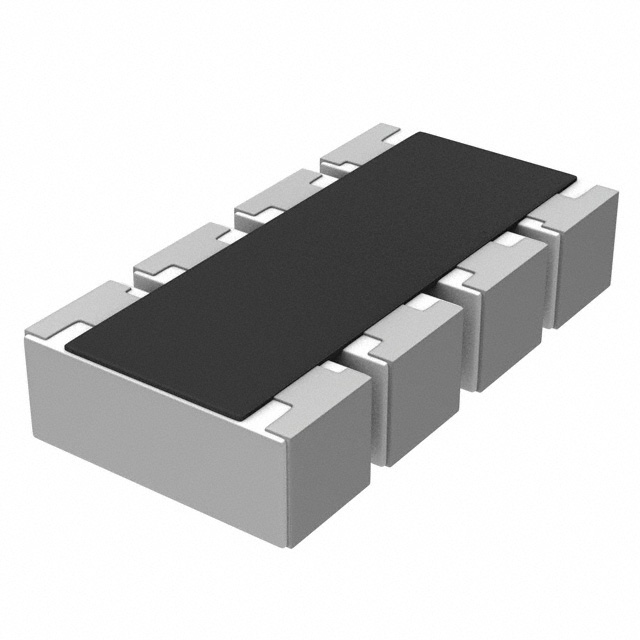

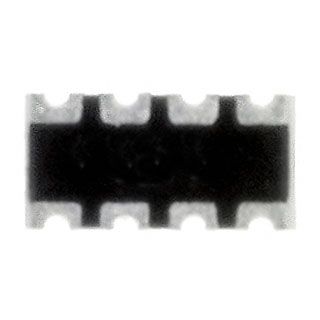

YC164-JR-0715KL

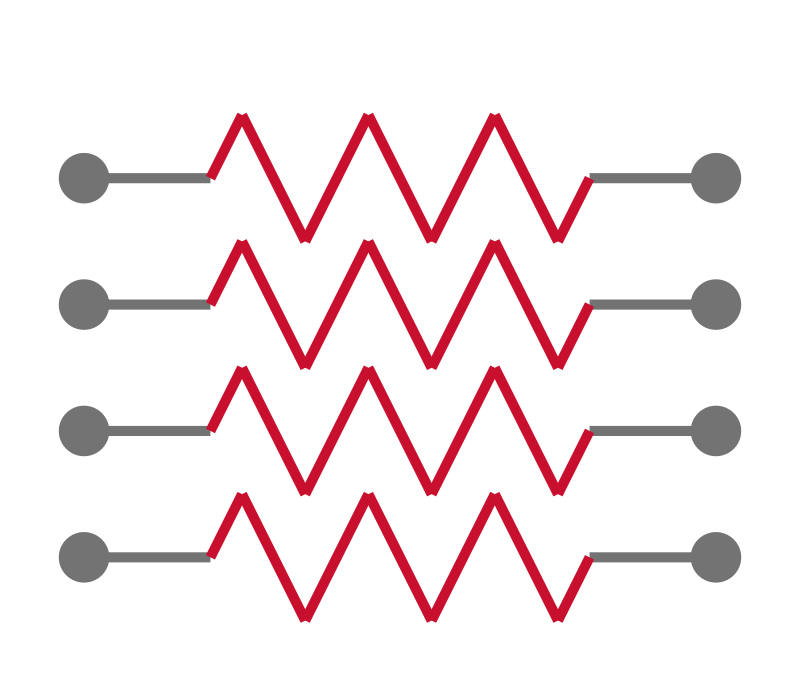

YC164 系列 4 元件 15 kOhms 5 % 4 x 0603封装 SMD 贴片电阻网络

器网络与阵列

得捷:
RES ARRAY 4 RES 15K OHM 1206

立创商城:
15kΩ ±5%

贸泽:
Resistor Networks & Arrays 15K Ohm 5% 1/16W 50 Volts

艾睿:

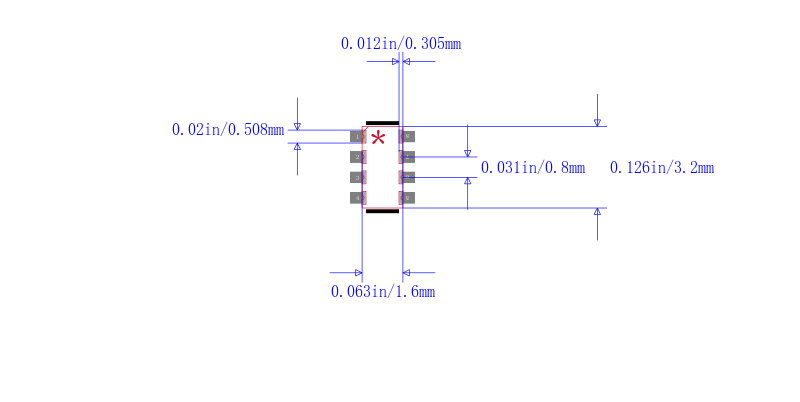

If you&s;re looking to conserve space in your circuit design, then this YC164-JR-0715KL resistor array from Yageo will save you valuable space by packing multiple resistors into one IC chip. This product&s;s 4 resistors have a value of 15K Ohm. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes thick film technology. The YC164-JR-0715KL part has a convex termination style. It has a tolerance of 5%. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. This product&s;s terminal pitch is 0.8 mm.

安富利:
Array Chip Resistor Thick Film 15kOhm 5% ISOL Molded 8-Pin 1206 Convex Paper T/R

Chip1Stop:
Res Thick Film Array 15K Ohm 5% ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R

Verical:
Res Thick Film Array 15K Ohm 5% ±200ppm/C ISOL Epoxy 8-Pin 12064 X 0603 Convex SMD Automotive T/R

儒卓力:
**CN1206R4 15K 5% 0,063W CONVEX **
