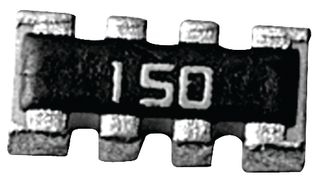

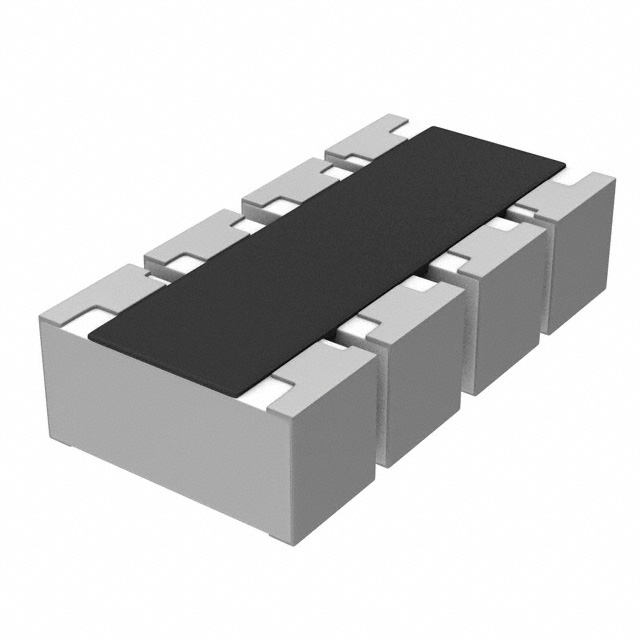

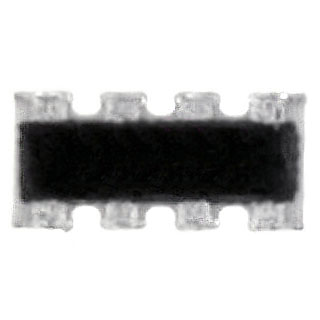

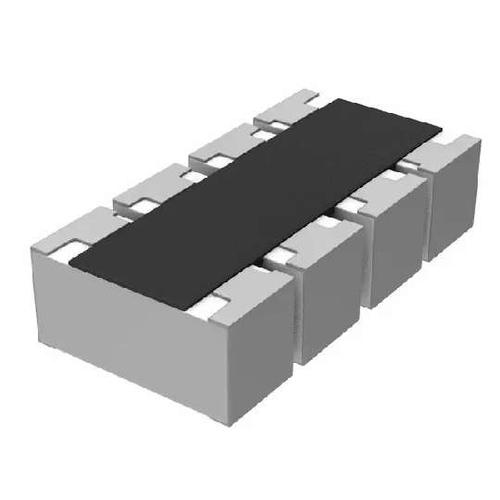

YC124-JR-07100RL

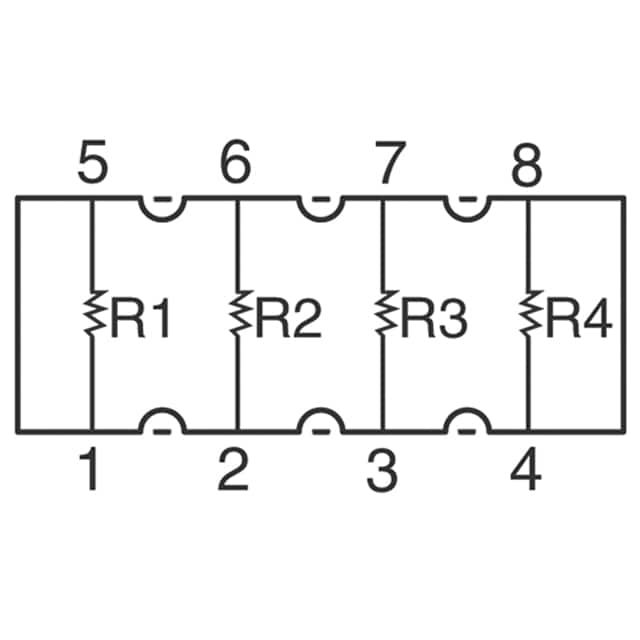

YAGEO  YC124-JR-07100RL  电阻阵列, 隔离式, 4X, 100Ω, 5% SMD

器网络与阵列

得捷:
RES ARRAY 4 RES 100 OHM 0804

立创商城:
100Ω ±5%

艾睿:

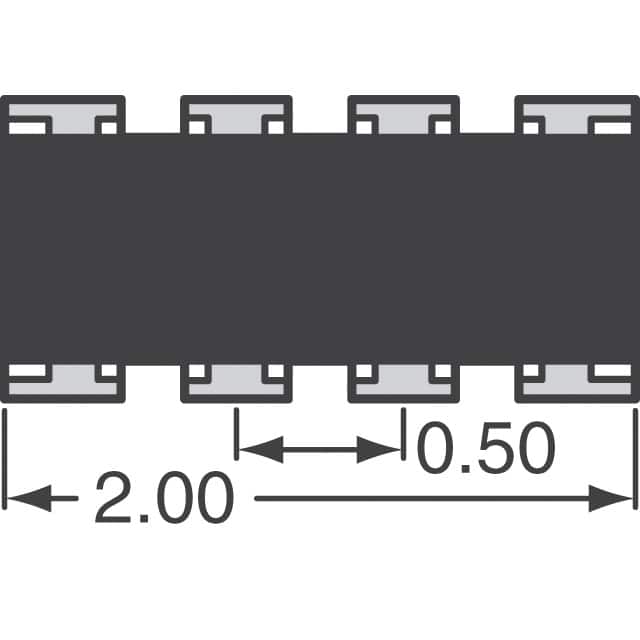

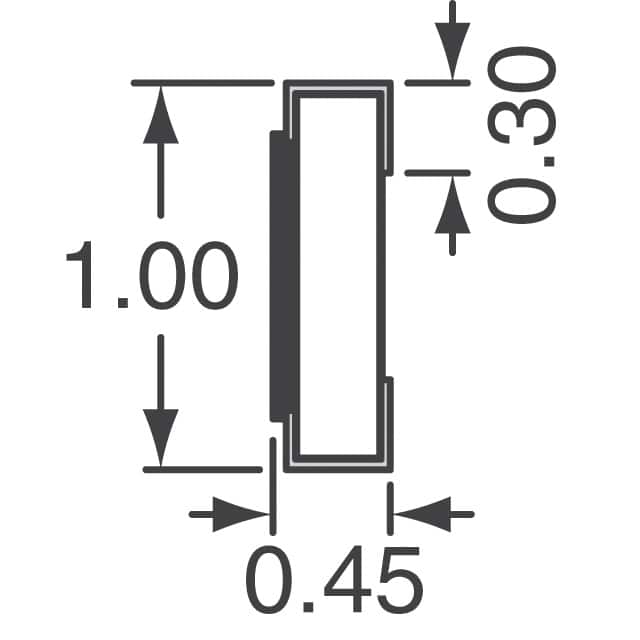

This YC124-JR-07100RL resistor array by Yageo packs multiple resistors into one IC chip. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 100 Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This part has an operating temperature of -55 to 155 °C. The YC124-JR-07100RL part has a convex termination style. This device is made with thick film technology. This product&s;s terminal pitch is 0.5 mm. This product is 2 mm long, 0.45 mm tall and 1 mm deep. It has a tolerance of 5%.

TME:
Resistor network: Y; 100Ω; SMD; 0804; No.of resistors:4; 63mW; ±5%

Newark:
# YAGEO  YC124-JR-07100RL  Fixed Network Resistor, Isolated, 100 ohm, 25 V, 4 Elements, Isolated, 0402 [1005 Metric], 62.5 mW

儒卓力:
**CN0804R4 100R 5% 0,063W CONVEX **
