YC358TJK-07100KL

电阻器网络与阵列

器网络与阵列

得捷:
RES ARRAY 8 RES 100K OHM 2512

立创商城:
100kΩ ±5%

艾睿:

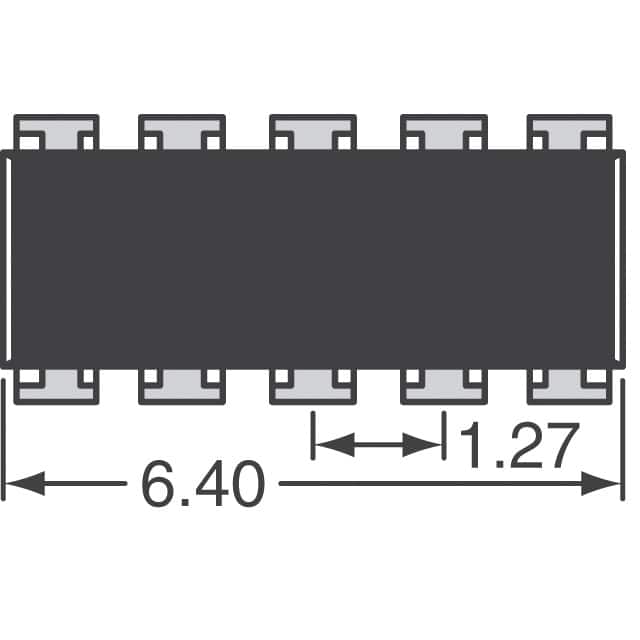

If you&s;re looking to conserve space in your circuit design, then this YC358TJK-07100KL resistor array from Yageo will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This product&s;s 8 resistors have a value of 100K Ohm. This dependable part has a power rating per resistor of 0.063 1/16 W. It has 10 terminals. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. This product&s;s terminal pitch is 1.27 mm. It has a tolerance of 5%. This product is 6.4 mm long, 0.6 mm tall and 3.2 mm deep. The YC358TJK-07100KL part has a convex termination style.

Chip1Stop:
Res Thick Film Array 100K Ohm 5% ±200ppm/℃ BUS Molded 10-Pin 25128 X 1206 Convex SMD T/R

Verical:
Res Thick Film NET 100K Ohm 5% ±200ppm/C BUS Epoxy 10-Pin 25128 X 1206 Convex SMD Automotive T/R
