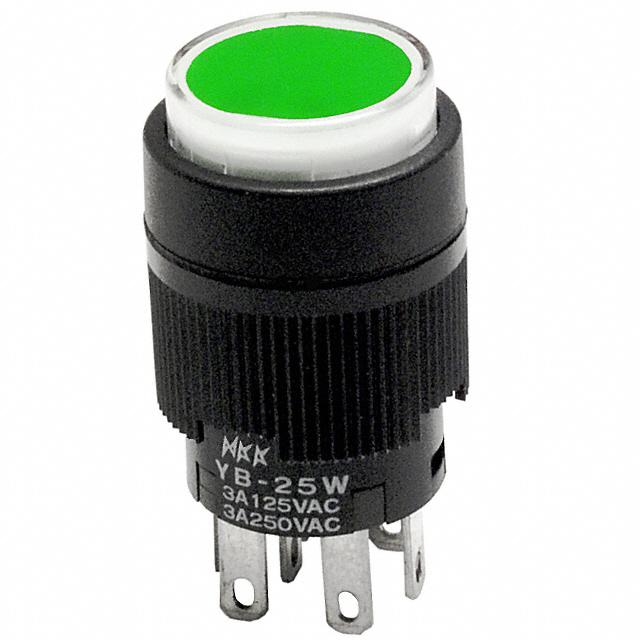

YB25WCKW01-5F-JF

NKK SWITCHES  YB25WCKW01-5F-JF  按钮开关, 发光, DPDT, 3A, 250V, 绿色

Series YB short body pushbutton switches are available with and without illumination. Dust, oil tight and splash-proof panel seals qualify to IP65 of IEC60529 similar to NEMA 4 and 13. Combination bezel-barrier is an integral part of the switch and prevents accidental actuation. From a design standpoint, with less than one inch behind panel depth, these switches easily fit into more applications.

立创商城:
YB25WCKW01-5F-JF

贸泽:
Illuminated Pushbutton Switches DPDT ONON GRN/CLR

e络盟:
按钮开关, 发光, DPDT, 3A, 250V, 绿色

艾睿:
Have complete control of the state of your design by implementing this YB25WCKW01-5F-JF push button switch from NKK Switches. It has a DPDT configuration. This device has a maximum current rating of 3 A @ 250VAC 30VDC. This push switch has an operating temperature range of -25 °C to 50 °C. The YB25WCKW01-5F-JF push switch has a quick connect/solder lug termination style. This product is 18 mm long, 32.6 mm tall and 18 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
Switch, Pushbutton; DPDT; 3A 125VAC; Lighted; Grn; 16mm

Chip1Stop:
Switch Push Button ON ON DPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount

Verical:
Switch Push Button ON ON DPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount

Newark:
# NKK SWITCHES  YB25WCKW01-5F-JF  Illuminated Pushbutton Switch, DPDT, On-On, 3 A, 250 V, Green

Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANELSEAL
