电阻器网络与阵列
器网络与阵列
得捷:
RES ARRAY 4 RES 180 OHM 1206
立创商城:
180Ω ±5%
艾睿:

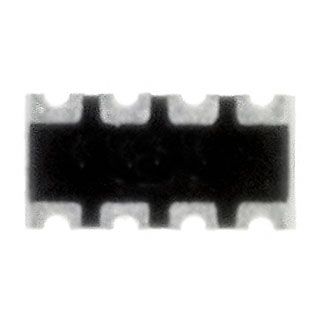

Pack multiple resistors into a single chip with this YC164-JR-07180RL resistor array from Yageo. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 180 Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This product&s;s terminal pitch is 0.8 mm. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. The YC164-JR-07180RL part has a convex termination style.
安富利:
Res Thick Film Array 180 Ohm 5% ±200ppm/°C ISOL Molded 8-Pin 12064 X 0603 Convex SMD Paper T/R
Chip1Stop:
Res Thick Film Array 180 Ohm 5% ±200ppm/ÂÂ℃ ISOL Molded 8-Pin 12064 X 0603 Convex SMD Paper T/R
Verical:
Res Thick Film Array 180 Ohm 5% ±200ppm/C ISOL Epoxy 8-Pin 12064 X 0603 Convex SMD Automotive T/R
儒卓力:
**CN1206R4 180R 5% 0,063W CONVEX **
Win Source:
RES ARRAY 4 RES 180 OHM 1206
触点数 8
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.063 W
电路数 4
耗散功率 0.0625 W
产品系列 YC
电阻 180 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 3.35 V
安装方式 Surface Mount
引脚数 8
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 DDRAM,SDRAM
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
