C & K COMPONENTS Y2011U2C203NQ 键锁开关, Y系列, DPST-CO, 焊接, 4 A, 250 V

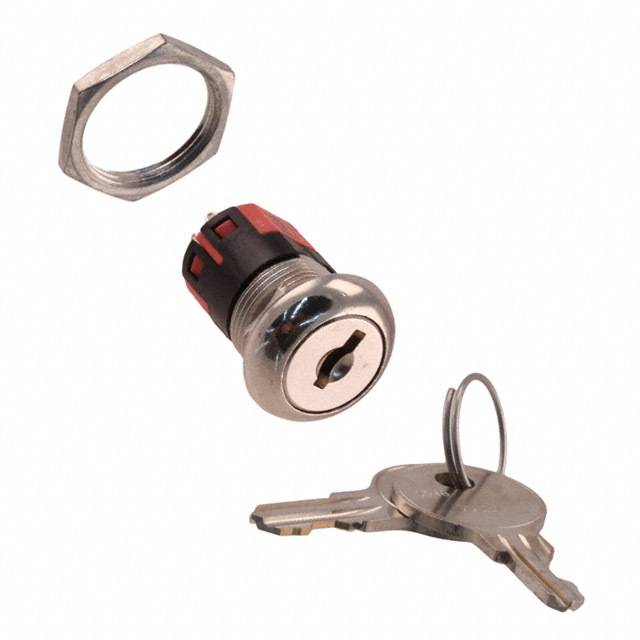

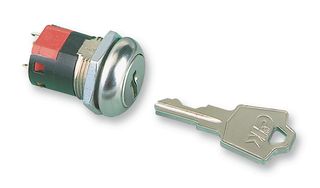

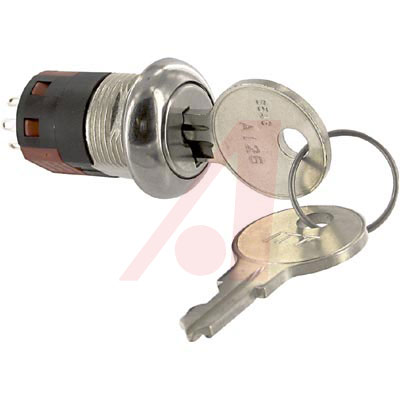

The is a DPDT Tumbler Keylock Switch with 90° index with two nickel plated brass keys. It has glass filled polyester housing, silver-plated contacts, stainless steel facing 4 tumbler lock with detent and solder lug with hole termination. It comes with mounting/lock style zinc alloy nut.
额定电流 4.00 A
触点类型 DPST
针脚数 2
接触电阻 10.0 mΩ
触点额定电流 4 A
额定电流Max 4A @125VAC, 28VDC
额定功率Max 0.4VA @20VAC, 20VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Solder Lug
封装 -
长度 17.78 mm
高度 34.85 mm
封装 -
触点材质 Copper
产品生命周期 10000 Cycles
包装方式 Tray
制造应用 计算机和计算机周边, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
