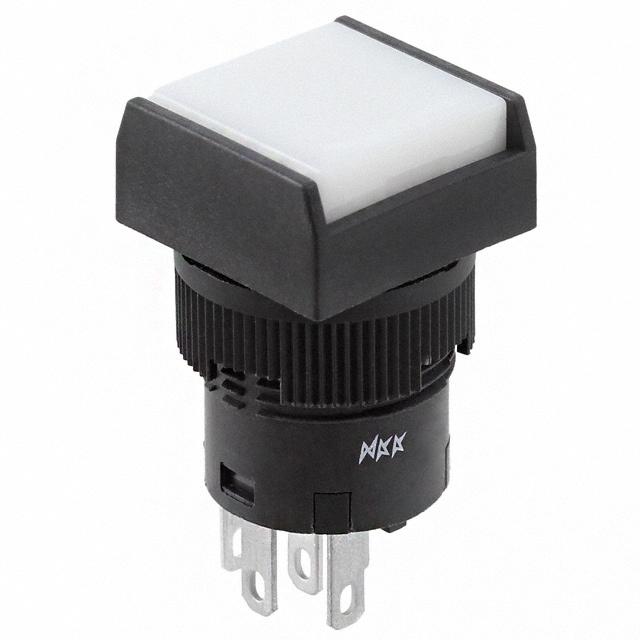

Switch Push Button ON ON SPDT Square Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Series YB short body pushbutton switches are available with and without illumination. Dust, oil tight and splash-proof panel seals qualify to IP65 of IEC60529 similar to NEMA 4 and 13. Combination bezel-barrier is an integral part of the switch and prevents accidental actuation. From a design standpoint, with less than one inch behind panel depth, these switches easily fit into more applications.
立创商城:
YB15SKW01-BB
得捷:
SWITCH PUSHBUTTON SPDT 3A 125V
贸泽:
Pushbutton Switches SPDT ON-ON WHT SQR SILVER
艾睿:
Switch Push Button ON ON SPDT Flush Square Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Allied Electronics:
SHORT BODY PUSHBUTTON/PANEL MOUNT
Chip1Stop:
Switch Push Button ON ON SPDT Flush Square Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Verical:
Switch Push Button ON ON SPDT Square Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANEL MOUNT
触点电镀 Silver
额定电压DC 30 V
额定电压AC 125 V
额定电流 3 A
触点类型 SPDT
触点额定电流 3.00 A
额定电流Max 3A @250VAC, 30VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 125 VAC
接触电阻Max 50 mΩ
安装方式 Lug, Snap-In
封装 -
长度 18 mm
宽度 18 mm
高度 32.6 mm
封装 -
触点材质 Silver Alloy
工作温度 -25℃ ~ 70℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
