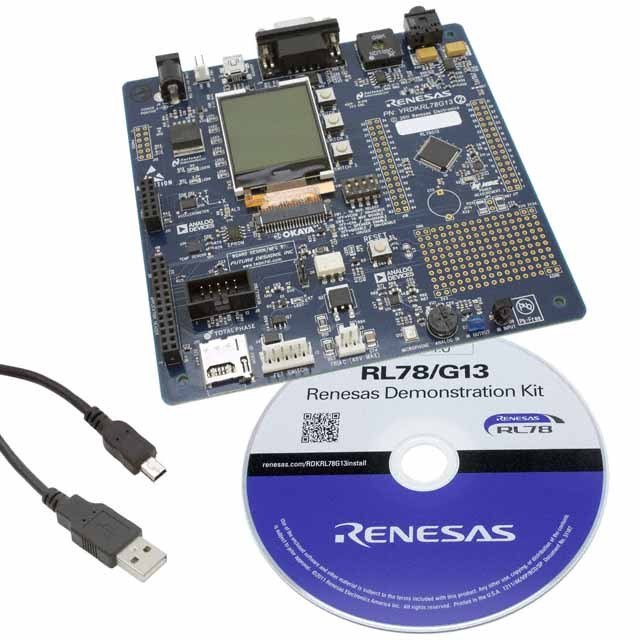

RENESAS YRDKRL78G13 演示套件, 用于RL78/G13微控制器, 强大的调试和演示平台, 3轴加速度器
The is an Renesas demonstration Kit for RL78/G13. The RDK for RL78/G13 is an evaluation and demonstration tool for Renesas RL78/G13 microcontrollers. The goal is to provide the user with a powerful debug and demonstration platform targeted at common applications. To aid in the evaluation of the RL78 family of microcontrollers, we include IAR"s Embedded Workbench Kickstart Edition for the RL78. This full featured tool suite allows for up to 16KB of application code to be implemented on the RL78/G13 RDK. To facilitate programming the RDK, the IAR tools support the Renesas TK Debugger which is on board the RL78/G13 RDK. A set of human/machine interfaces are tightly integrated with the features of the RL78 and the software demonstration programs providing the user with an accessible platform to rapidly evaluate and customize.
- .
- Stereo audio driver connected to the PWM interface
- .
- Volume Control Potentiometer
- .
- Micro SD card interface for audio and data files
- .
- PWM controlled FET circuit for load control applications
- .
- Isolated Triac and drive circuit for Triac load control
- .
- 3 axis Accelerometer Digital
- .
- RS232 Interface, I2C, SPI with Debug through the Beagle connector from Total Phase
- .
- On board Renesas TK Debugger source code debugging
- .
- User circuit breadboard area
- .
- Digital Light Sensor for reading lux
The RDK is neither under nor over voltage protected. Use a 5V REGULATED centre positive supply.
