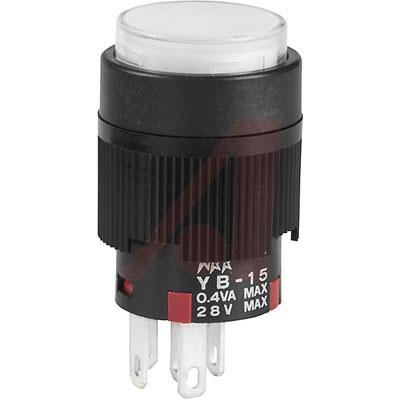

Switch Push Button ON ON SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount
Series YB short body pushbutton switches are available with and without illumination. Dust, oil tight and splash-proof panel seals qualify to IP65 of IEC60529 similar to NEMA 4 and 13. Combination bezel-barrier is an integral part of the switch and prevents accidental actuation. From a design standpoint, with less than one inch behind panel depth, these switches easily fit into more applications.
得捷:
SWITCH PUSH SPDT 0.4VA 28V
立创商城:
YB15CKG01-5F-JB
贸泽:
Illuminated Pushbutton Switches ONON RND BUSHING GRN LED CLR/WHT CAP
艾睿:
Switch Push Button ON ON SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount
Allied Electronics:
Switch, pushbtn; Rnd; SPDT, Mom; 0.4VA/28VAC; Sldr/QC trml; Grn LED; 16mm; UL CSA
Chip1Stop:
Switch Push Button ON ON SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount
额定电压DC 28 V
接触器类型 Button
额定电压AC 28 V
额定电流 0.0142 A
额定功率 0.4 VA
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 50 ℃
工作温度Min -25 ℃
额定电压 28 VDC
接触电阻Max 100 mΩ
安装方式 Panel, Solder Lug
封装 -
长度 18 mm
宽度 18 mm
高度 32.6 mm
封装 -
工作温度 -25℃ ~ 50℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
