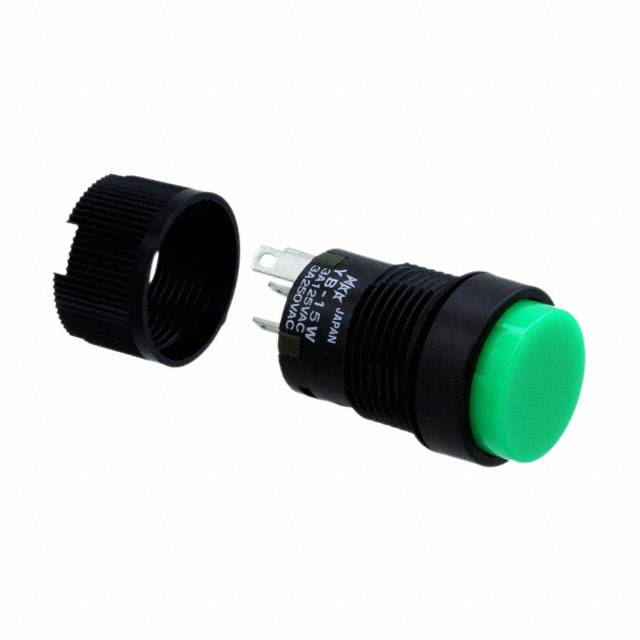

YB15WCKW01-FB

Switch Push Button ON ON SPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel

Series YB short body pushbutton switches are available with and without illumination. Dust, oil tight and splash-proof panel seals qualify to IP65 of IEC60529 similar to NEMA 4 and 13. Combination bezel-barrier is an integral part of the switch and prevents accidental actuation. From a design standpoint, with less than one inch behind panel depth, these switches easily fit into more applications.

立创商城:
YB15WCKW01-FB

艾睿:
This classic YB15WCKW01-FB push button switch from NKK Switches will do exactly what you need it to do by turning your circuit on and off. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 250VAC 30VDC. This push switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The YB15WCKW01-FB push switch has a quick connect/solder lug termination style. This product is 18 mm long, 32.6 mm tall and 18 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
SHORT BODY PUSHBUTTON/PANELSEAL

Chip1Stop:
Switch Push Button ON ON SPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount

Verical:
Switch Push Button ON ON SPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel

Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANELSEAL
