Y 系列 不锈钢 4 转臂 单刀三掷 45 度 焊接 接线片 开关锁

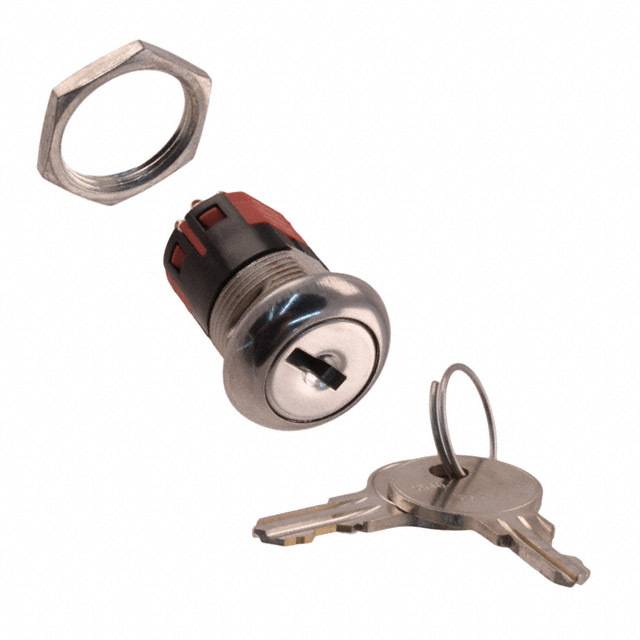

The is a SP3T tumbler power Keylock Switch with 45° index and two nickel plated brass keys. It has glass-filled polyester housing, stainless steel facing 4 tumbler lock with detent lock, solder lug with hole terminals and silver contacts. It comes with mounting zinc alloy nut.
额定电流 4.00 A
触点类型 SP3T
针脚数 3
接触电阻 10.0 mΩ
触点额定电流 4.00 A
额定电流Max 4A @125VAC, 28VDC
额定功率Max 0.4VA @20VAC, 20VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Lug
封装 125
长度 17.78 mm
高度 34.85 mm
封装 125
触点材质 Copper
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
