Y108122A203NQ

C&K 开关锁 - Y 系列抗静电开关 - 超过 20 KV 直流抗静电能力 电气寿命：10000 次接通和断开循环（满负载） 材料：锌合金锁，带不锈钢表面和玻璃填充聚酯外壳 随附两把镀镍黄铜钥匙，带代码编号 ### 钥匙开关产品规格 --- 触点额定值 | 30 V 直流 100 mA 机械寿命 | ´ 104 次 测试电压 | 1000 V 1 分钟（主要接线端子） 分度角 | 90° 焊接温度 | 工作温度范围 | -20°C 至 +55°C

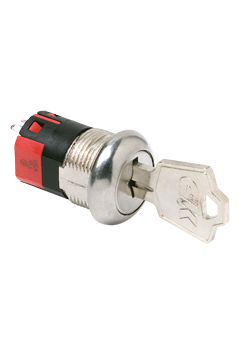

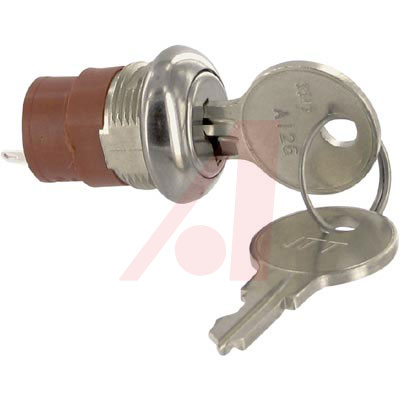

The is a single-pole triple-throw SP3T 45° momentary Tumbler Switchlock with solder lug with hole termination, two nickel plated brass keys, 4 tumbler lock and stainless steel facing lock finish. The Y series switch has silver plated copper contact, zinc alloy mounting nut and glass filled polyester housing.

.

Below 10mR typical initial at 2 to 4VDC 100mA Contact resistance

.

1000Vrms at sea level Minimum dielectric strength
