YB25WSKW01

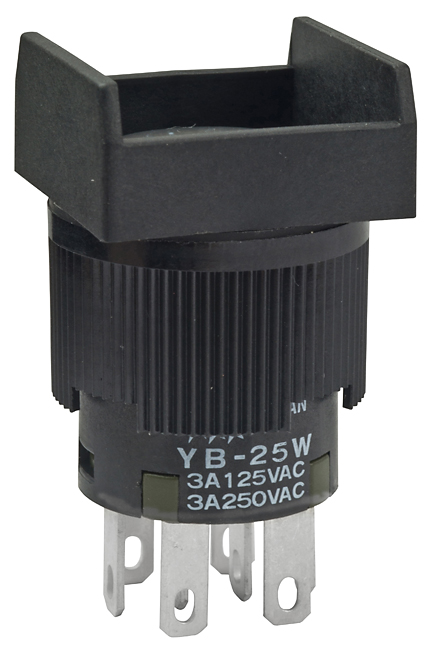

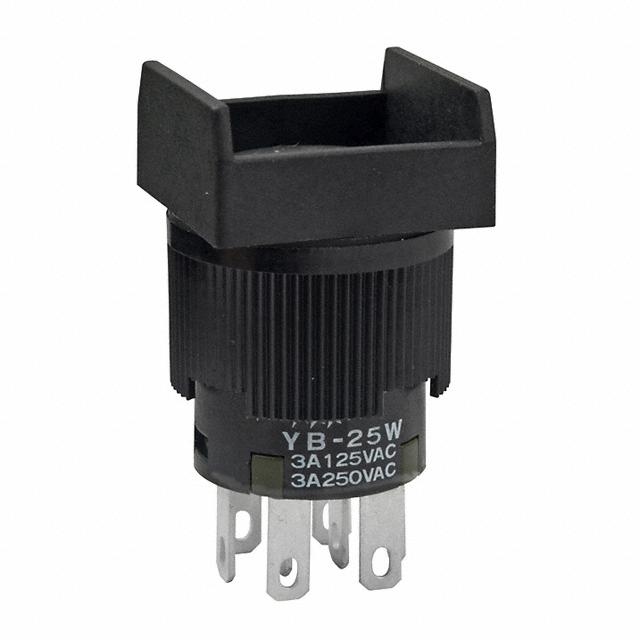

NKK SWITCHES  YB25WSKW01  按钮开关, 非发光, DPDT, 3A, 250VAC

Series YB short body pushbutton switches are available with and without illumination. Dust, oil tight and splash-proof panel seals qualify to IP65 of IEC60529 similar to NEMA 4 and 13. Combination bezel-barrier is an integral part of the switch and prevents accidental actuation. From a design standpoint, with less than one inch behind panel depth, these switches easily fit into more applications.

立创商城:
YB25WSKW01

e络盟:
按钮开关, 非发光, DPDT, 3A, 250VAC

艾睿:
Turn on and off portions of your circuit design with the aid of this YB25WSKW01 push button switch manufactured from NKK Switches. This device has a maximum current rating of 3 A @ 250VAC 30VDC. It has a DPDT configuration. This push switch has an operating temperature range of -25 °C to 70 °C. The YB25WSKW01 push switch has a quick connect/solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 18 mm long, 32.6 mm tall and 18 mm deep.

Allied Electronics:
Switch, Pushbutton, DPDT, Momentary, On-On, Square Panel Seal, Silv Solder Lug

Verical:
Switch Push Button ON ON DPDT Square Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount

Newark:
# NKK SWITCHES  YB25WSKW01  Pushbutton Switch, DPDT, On-On, 250 V, 30 V, 3 A, Quick Connect, Solder

Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANELSEAL
