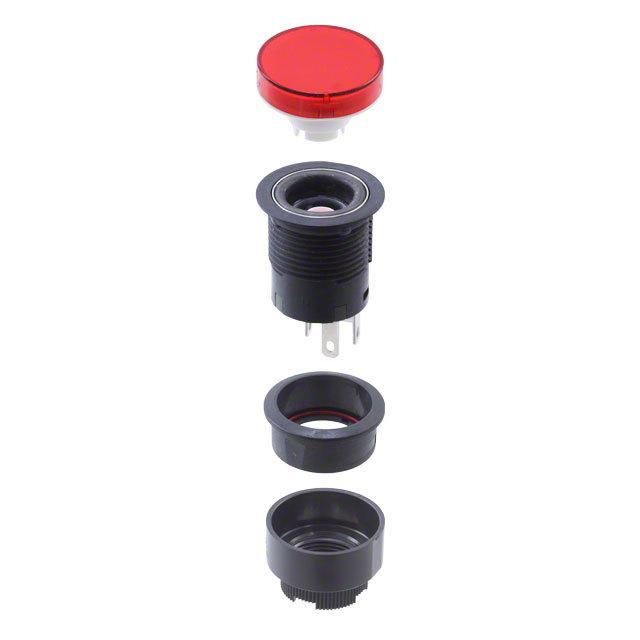

YB216CWCKW01-5C-CB

NKK SWITCHES  YB216CWCKW01-5C-CB  按钮开关, 发光, DPDT, 3A, 250V, 红色

Splashproof momentary or alternate action pushbutton switches. Combination solder lug and quick connect 0.110 in. terminals.

.

* Resistive Electrical Capacity:** 3 A @ 125/250 VAC. **Dielectric Strength:** 1,000 VAC between contacts for 1 minute min. **Electrical Life:** 100,000 operations min.** Total Travel: **0.118". **Nominal Operating Force:** Single pole; 1.5 N, double pole; 3.0 N. **Operating Temperature: **–25°C to +50°C. **Panel Thickness: **0.020" to 0.197.

**Features

**

* Meets IP65 of IEC60529 Standards**

**

* 1.8 mm Height Above Panel**

**

* Tamper Resistant**

**

* Full Face or Ring Illumination**

**

* 22 mm Panel Cutout.
