YB225CWCKW01/CUL-5D-EB

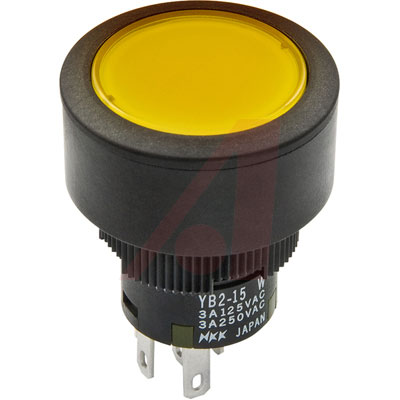

Switch Push Button ON ON DPDT Flush Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount

Round bushing mount splashproof momentary or alternate action pushbutton switches. Solder lug terminals.

.

* Resistive Electrical Capacity:** 3 A @ 125/250 VAC or 3 A @ 30 VDC. **Dielectric Strength:** 1,000 VAC between contacts for 1 minute min. **Electrical Life:** 100,000 operations min.** Total Travel: **0.118". **Nominal Operating Force:** Single pole; 1.5 N, double pole; 3.0 N. **Operating Temperature: **–25°C to +50°C. **Panel Thickness: **0.020" to 0.197". **LED Specifications: Fwd Peak Current:** 40 mA.** Continuous Fwd Current:** 26 mA. **Fwd Voltage:** Red — 1.9 V; Amber — 2.0 V. **Reverse Peak Voltage: **4 V.

**Features

**

* Meets IP65 of IEC60529 Standards**

**

* 1.8 mm Height Above Panel**

**

* Tamper Resistant**

**

* Full Face or Ring Illumination**

**

* 22 mm Panel Cutout
