Y4485V0004QT9R

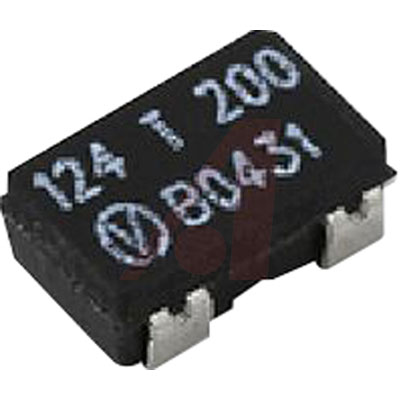

VISHAY FOIL RESISTORS Y4485V0004QT9R Fixed Network Resistor, 1KΩ, 25V, 2 Elements, Voltage Divider, SMD, 0.05W1/20W

* Temperature Coefficient of Resistance TCR: Absolute ±5 ppm/°C Typical 0°C to +60°C ×0.2 ppm/°C Typical –55°C to +125°C, +25°C Ref. Tracking: 0.1 ppm/°C Typical

* Power Rating at 70°C: Entire Package: 0.1 W; Each Resistor: 0.05W

* Large Variety of Resistnace Ratios: 1:100

* Foil resistors are not restricted to standard values/ ratios; specific “as required” values/ratios can be supplied at no extra cost or delivery e.g. 1K234/2K345 vs. 1K/2K
