Y14535K00000V9L

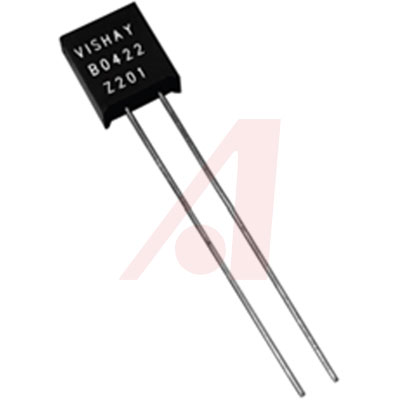

VISHAY FOIL RESISTORS  Y14535K00000V9L  通孔电阻器, Z201系列, 5 kohm, 600 mW, ± 0.005%, 300 V, 径向引线

* Temperature Coefficient of Resistance TCR: ±0.05 ppm/°C Typical 0°C to +60°C ±0.2 ppm/°C Typical –55°C to +125°C, +25°C Ref.

* Rated power: 0.6 W at 70°C 0.3 W at 125°C

* Resistance Tolerance: to ±0.005%

* Resistance range: 10 ΩW to 100 kΩ Higher or Lower Values of Resistance Available

Newark:
# VISHAY FOIL RESISTORS  Y14535K00000V9L  Through Hole Metal Foil Resistor, Z201 Series, 5 kohm, 600 mW, - 0.005%, 300 V, Radial Leaded
