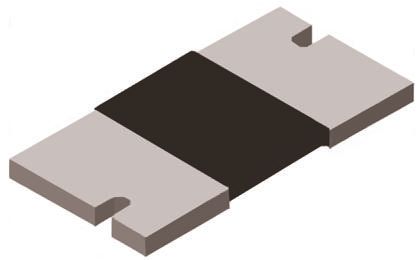

VISHAY FOIL RESISTORS Y14870R01000B9R 电流感应电阻器, 表面安装, CSM系列, 0.01 ohm, 1 W, ± 0.1%, 2512 [6432公制]
The is a 0.01R 1W SMD high precision current sensing Power Resistor with lead Pb-free termination and metal foil Bulk Metal® technology. The typical current sensing resistor offers a load-life stability of >=1% through a 2000-hour workload. The improved resistance stability of the CSM series makes it ideal for tightened-stability voltage division and precision current sensing applications. The device features a low thermal electromotive force EMF that is critical in many precision applications.
- .
- Proprietary processing techniques produce low TCR, tight tolerance and improve stability
- .
- <5nH Low inductance
容差 ±0.1 %
额定功率 1 W
电阻 0.01 Ω
阻值偏差 ±0.1 %
工作温度Max 170 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装公制 6432
封装 2512
长度 6.35 mm
宽度 3.2 mm
高度 0.635 mm
封装公制 6432
封装 2512
工作温度 -65℃ ~ 170℃
温度系数 ±15 ppm/℃
包装方式 Cut Tape CT
制造应用 传感与仪器, 电源管理, 消费电子产品, Aerospace, 医用, Power Management, 商业, 航空电子, Commercial, Consumer Electronics, Sensing & Instrumentation, 测试与测量, Military, 军用与航空, Medical, Test & Measurement, Defence, 国防, Avionics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/06/15
