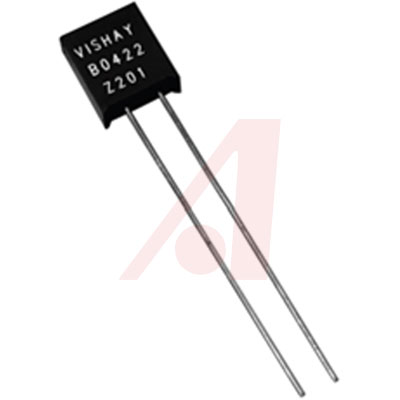

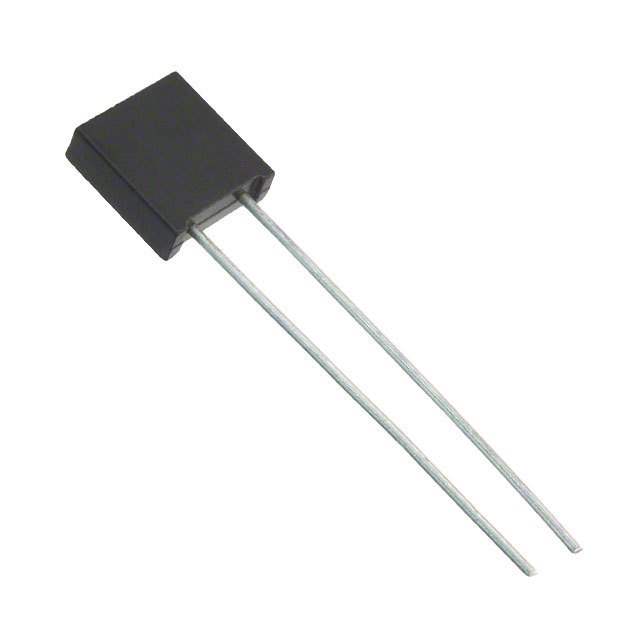

VISHAY FOIL RESISTORS Y145310K0000V9L 通孔电阻器, Z201系列, 10 kohm, 600 mW, ± 0.005%, 300 V, 径向引线
The is a 10kR 600mW through-hole mounting Z-Foil Resistor with standard lead Pb-free termination. The Z-foil technology provides a significant reduction of the resistive components sensitivity to ambient temperature variations TCR and applied power changes PCR. This ultra high precision resistor is suitable for precision amplifiers and EB applications.
- .
- Electrostatic discharge ESD at least to 25000V
- .
- Non-inductive and non-capacitive design
- .
- Drop in replacement for S102C/K
- .
- Rise time - 1ns without ringing
ESD sensitive device, take proper precaution while handling the device.
额定电压DC 300 V
容差 ±0.005 %
额定功率 600 mW
电阻 10 kΩ
阻值偏差 ±0.005 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Through Hole
引脚数 2
封装 径向引线
长度 7.62 mm
高度 2.67 mm
封装 径向引线
工作温度 -55℃ ~ 125℃
温度系数 ±0.8 ppm/℃
包装方式 Bulk
制造应用 传感与仪器, Military, 军用与航空, Medical, Test & Measurement, Sensing & Instrumentation, Defence, 音频, Audio, 测试与测量, Aerospace, 医用, 国防
RoHS标准 RoHS Compliant
含铅标准 无铅
军工级 Yes
REACH SVHC版本 2015/06/15
