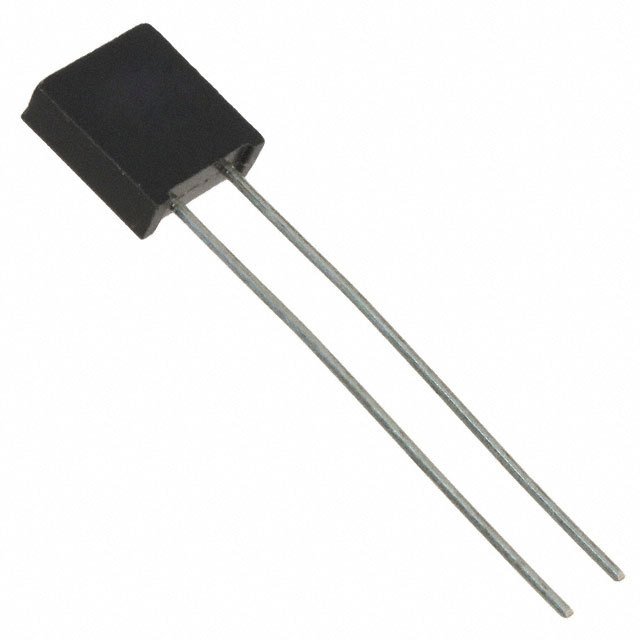

VISHAY FOIL RESISTORS Y0007120R000T9L 通孔电阻器, S系列, 120 ohm, 600 mW, ± 0.01%, 300 V, 径向引线
The S series from Vishay are radial leaded, high precision metal foil resistors. These resistors have low TCR, fast response time, low current noise and low thermal EMF. The S series metal foil resistors are used in applications where high precision and high stability is of major concern.
- .
- Resistance value range from 0.5ohm to 1Mohm
- .
- Maximum working voltage of 300V, 350V and 500V
- .
- Power rating is 1W at 125°C
- .
- ±1%, ±0.5%, ±0.1%, ±0.05%, ±0.02%, ±0.01% and ±0.005%tolerance
- .
- Endurance of 2000h at 70°C
额定电压DC 300 V
容差 ±0.01 %
额定功率 600 mW
电阻 120 Ω
阻值偏差 ±0.01 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Through Hole
引脚数 2
封装 径向引线
长度 7.62 mm
高度 2.67 mm
封装 径向引线
工作温度 -55℃ ~ 125℃
温度系数 ±4.5 ppm/℃
包装方式 Bulk
制造应用 Industrial, 便携式器材, 工业, 消费电子产品, Consumer Electronics, Portable Devices, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 无铅
军工级 Yes
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
Y0007120R000T9L Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
S102C 120R00 0.01% 威世 | 完全替代 | Y0007120R000T9L和S102C 120R00 0.01%的区别 |
Y0785120R000T9L 威世 | 完全替代 | Y0007120R000T9L和Y0785120R000T9L的区别 |
Y0007120R000T139L 威世 | 功能相似 | Y0007120R000T9L和Y0007120R000T139L的区别 |
