Y0056500R000K0L

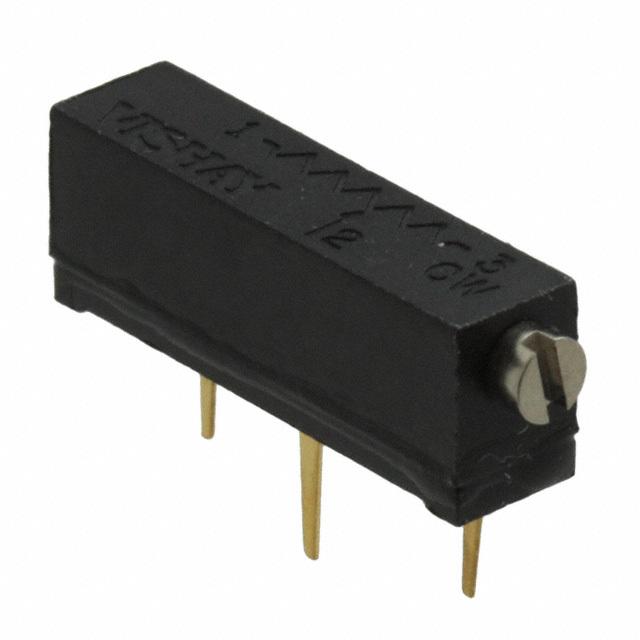

VISHAY FOIL RESISTORS  Y0056500R000K0L  微调电位器, 高精密, 金属箔, 500R, 10%

* Temperature Coefficient of Resistance TCR: ±10 ppm/°C. –55°C to +150°C Referance at +25°C; Through the Wiper 3; ±25 ppm/°C

* Power Rating: 0.75 W at +25°C

* Resistance Range: 10 Ω to 20 kΩ

* Resistance Tolerance: ±10%, ±5%

* Backlash: <0.05%

* Tap Test: 0.05% Typical, 0.1% Maximum

* ”O”-Ring Prevents Ingress of Fluids During Any Board Cleaning Operation

Newark:
# VISHAY FOIL RESISTORS  Y0056500R000K0L  Trimmer, Through Hole, 500 ohm, 750 mW, ± 10%, 1280G Series, 26 Turns, Through Hole
