YR1B1M0CC

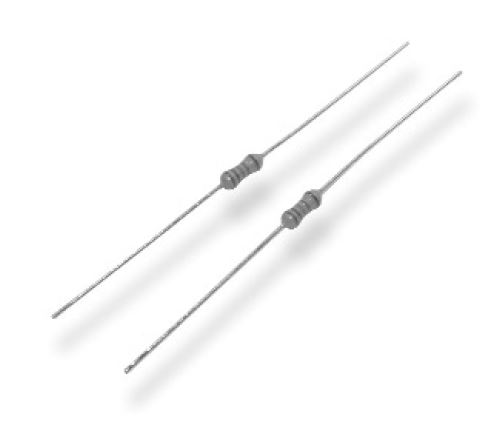

TE CONNECTIVITY / NEOHM  YR1B1M0CC  通孔电阻器, R系列, 1 Mohm, 250 mW, ± 0.1%, 500 V, 轴向引线

The R series precision metal film Fixed Resistor with resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. Precision metal film resistor is particularly suitable in all applications where long-term stability is important.

.

Tested for value and tolerance

.

Excellent stability under load and severe environmental conditions

.

Exhibits very low noise current and voltage coefficients

.

0.1% Tolerance and 15ppm temperature coefficients
