YM06132C205NQ

C&K 开关锁 - YM 系列电气寿命：10000 次接通和断开循环（满负载） 材料：锌合金锁，带不锈钢表面和尼龙 6/6 外壳 随附两把镀镍黄铜钥匙，带代码编号 ### 钥匙开关产品规格 --- 触点额定值 | 30 V 直流 100 mA 机械寿命 | ´ 104 次 测试电压 | 1000 V 1 分钟（主要接线端子） 分度角 | 90° 焊接温度 | 工作温度范围 | -20°C 至 +55°C

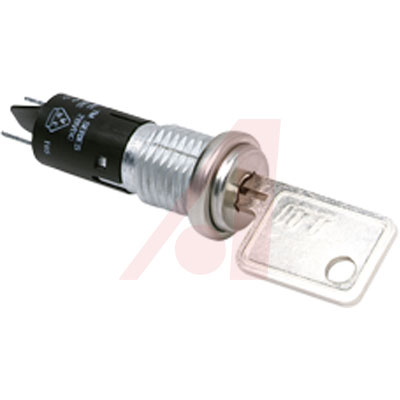

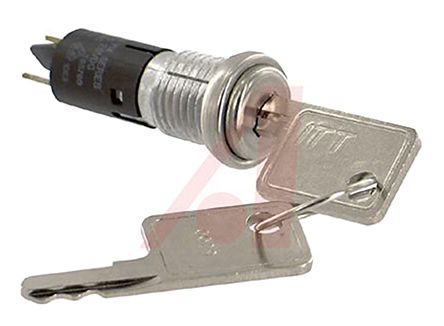

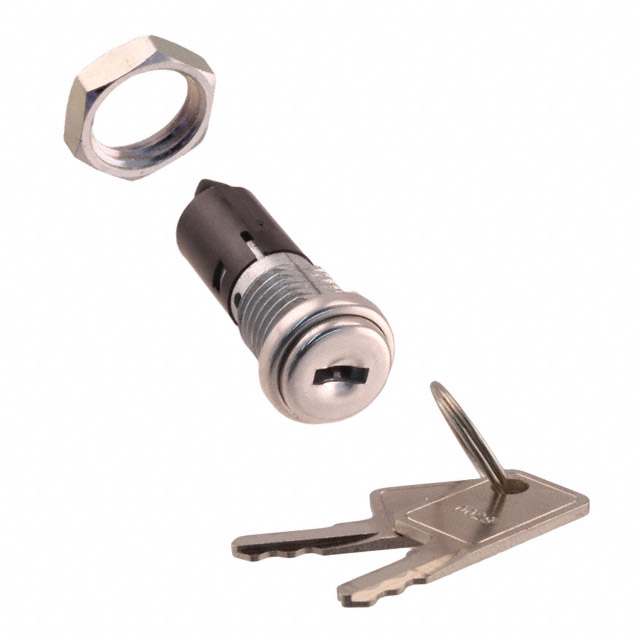

The is a SPST tumbler Keylock Switch with 90° index and two nickel-plated brass keys. It has nylon 6/6 housing, stainless steel facing 4 tumbler single bitted lock with detent, quick-connect terminals and silver contacts. It comes with mounting bright zinc-plated brass nut.

.

Snap-together assembly allows for pre-wiring of switch

.

UL94V-2 Flammability rating

.

10⁹R Minimum insulation resistance

.

<10mR Typical initial contact resistance
