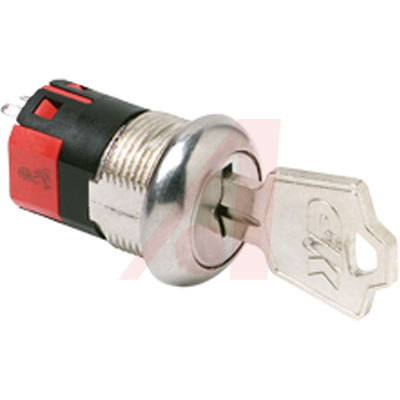

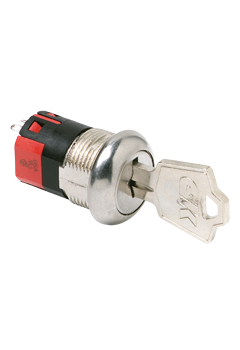

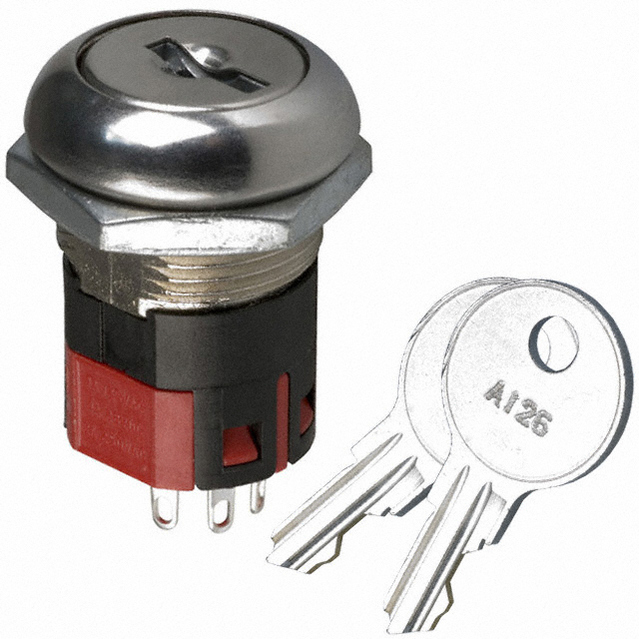

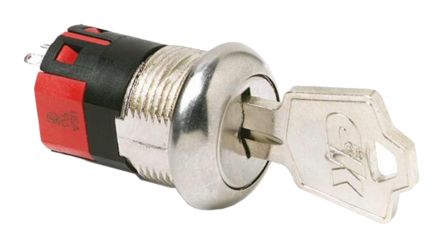

Y200AA2C203NQ

C&K 开关锁 - Y 系列抗静电开关 - 超过 20 KV 直流抗静电能力 电气寿命：10000 次接通和断开循环（满负载） 材料：锌合金锁，带不锈钢表面和玻璃填充聚酯外壳 随附两把镀镍黄铜钥匙，带代码编号 ### 钥匙开关产品规格 --- 触点额定值 | 30 V 直流 100 mA 机械寿命 | ´ 104 次 测试电压 | 1000 V 1 分钟（主要接线端子） 分度角 | 90° 焊接温度 | 工作温度范围 | -20°C 至 +55°C

Y Series Switchlocks, 4 A @ 125 VAC⁄ 28 VDC Current Rating, Solder lug with hole Termination

** Contact Rating:** 4 A at 125 VAC or 28 VDC; 2 A at 250 VAC UL/CSA. ** Electrical Life:** 10,000 make-and-break cycles at full load. ** Insulation Resistance:** 10 9 Ohms min. ** Dielectric Strength:** 1,000 V RMS min. at sea level. ** Lock:** Zinc alloy, stainless steel facing, four tumbler mechanism. ** Switch Housing and Top Plate:** Glass filled nylon. ** Contacts and Terminals:** Copper, silver plated. ** Included Hardware:** Nut. Two nickel keys supplied.

** Features**

* Anti-Static Switch — Exceeds 20 kV DC Static Resistance

* Wire Leads and Harnesses Available
