开发板和工具包 - ARM TB-S5D5 Board Kit

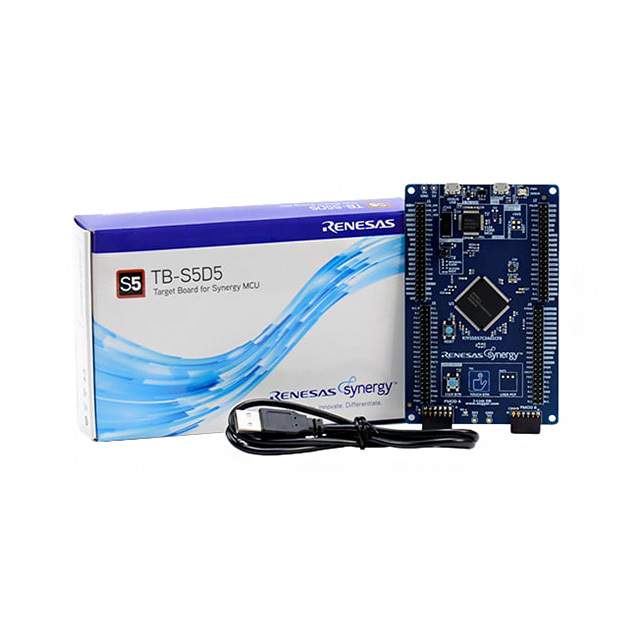

Target board S5D5 TB-S5D5 is a development kit for the Renesas Synergy™ S5D5 microcontroller in an LQFP-144 package. It is designed to help developers get started with initial firmware development and evaluation of the S5D5 Synergy™ MCU group. It features an 120MHz Arm™ Cortex® M4 core with FPU, 384KB SRAM, 1MB code flash memory, 32KB data flash memory.
-
.
-
Device USB connector for the main MCU
-
.
-
Segger J-Link® on-board interface for debugging and programming of the S5D5 MCU
-
.
-
2 PMOD connectors allowing use of appropriate PMOD compliant peripheral plug-in modules
-
.
-
Pin headers for access to power and signals for the main MCU
-
.
-
MCU reset push button switch
-
.
-
MCU boot configuration jumper
-
.
-
Status LED indicating availability of regulated power and connection status of J-Link interface
-
.
-
Red user LED controlled by the main MCU firmware
-
.
-
User push button, capacitive touch sensor button, potentiometer are controlled by main MCU firmware
