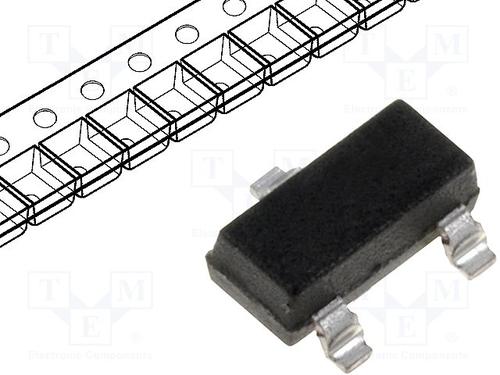

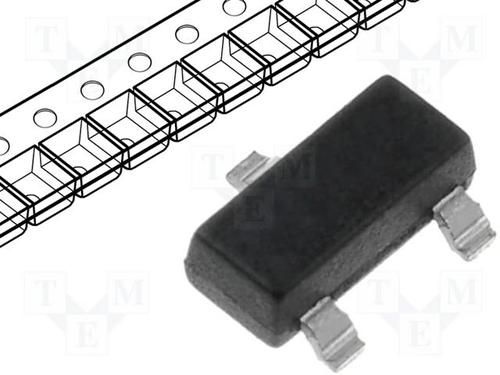

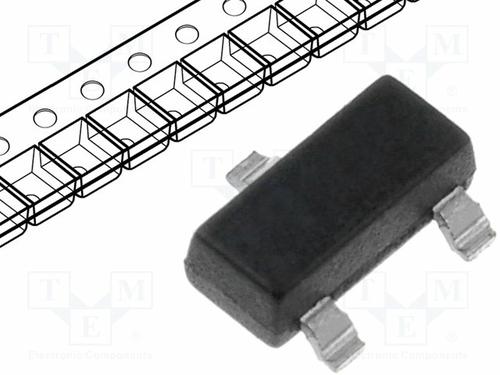

DIODES INC. ZXMN10A07F 晶体管, MOSFET, N沟道, 640 mA, 100 V, 1 ohm, 10 V, 4 V
The is a N-channel enhancement-mode MOSFET from Zetex utilizes unique structure that combines the benefits of low ON-resistance with fast switching speed. This makes them ideal for high efficiency and low voltage applications.
- .
- Low threshold
- .
- Low gate drive
Chip1Stop:
Trans MOSFET N-CH 100V 0.8A 3-Pin SOT-23
TME:
Transistor: N-MOSFET; unipolar; 100V; 800mA; 625mW; SOT23
Newark:
# DIODES INC. ZXMN10A07F MOSFET Transistor, N Channel, 640 mA, 100 V, 1 ohm, 10 V, 4 V
额定功率 625 mW
针脚数 3
漏源极电阻 1 Ω
极性 N-Channel
耗散功率 625 mW
阈值电压 4 V
漏源极电压Vds 100 V
连续漏极电流Ids 640 mA
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 3
封装 SOT-23
封装 SOT-23
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial, Motor Drive & Control, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
