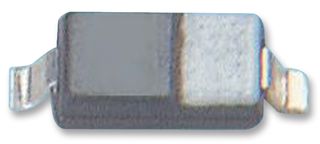

DIODES INC. ZLLS400 小信号肖特基二极管, 单, 40 V, 520 mA, 610 mV, 12 A, 150 °C
The is a surface mount Schottky Barrier Diode with matte tin annealed over alloy 42 lead frame terminals, UL94V-0 flame-rated case and cathode band terminal connection. Solderable terminals as per MIL-STD-202, method 208 standard. The Schottky diode offers users an excellent performance combination comprising high current operation, extremely low leakage and low forward voltage ensuring suitability for applications requiring efficient operation at higher temperature above 85°C.
- .
- Low equivalent on resistance
- .
- Extremely low leakage 10µA at 30V
- .
- High current capability IF=0.52A
针脚数 2
正向电压 560 mV
正向电流 520 mA
最大正向浪涌电流（Ifsm） 12 A
正向电压Max 610 mV
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-323
封装 SOD-323
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电源管理, Consumer Electronics, 通信与网络, 消费电子产品, Power Management, Communications & Networking, Motor Drive & Control, 电机驱动与控制
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
