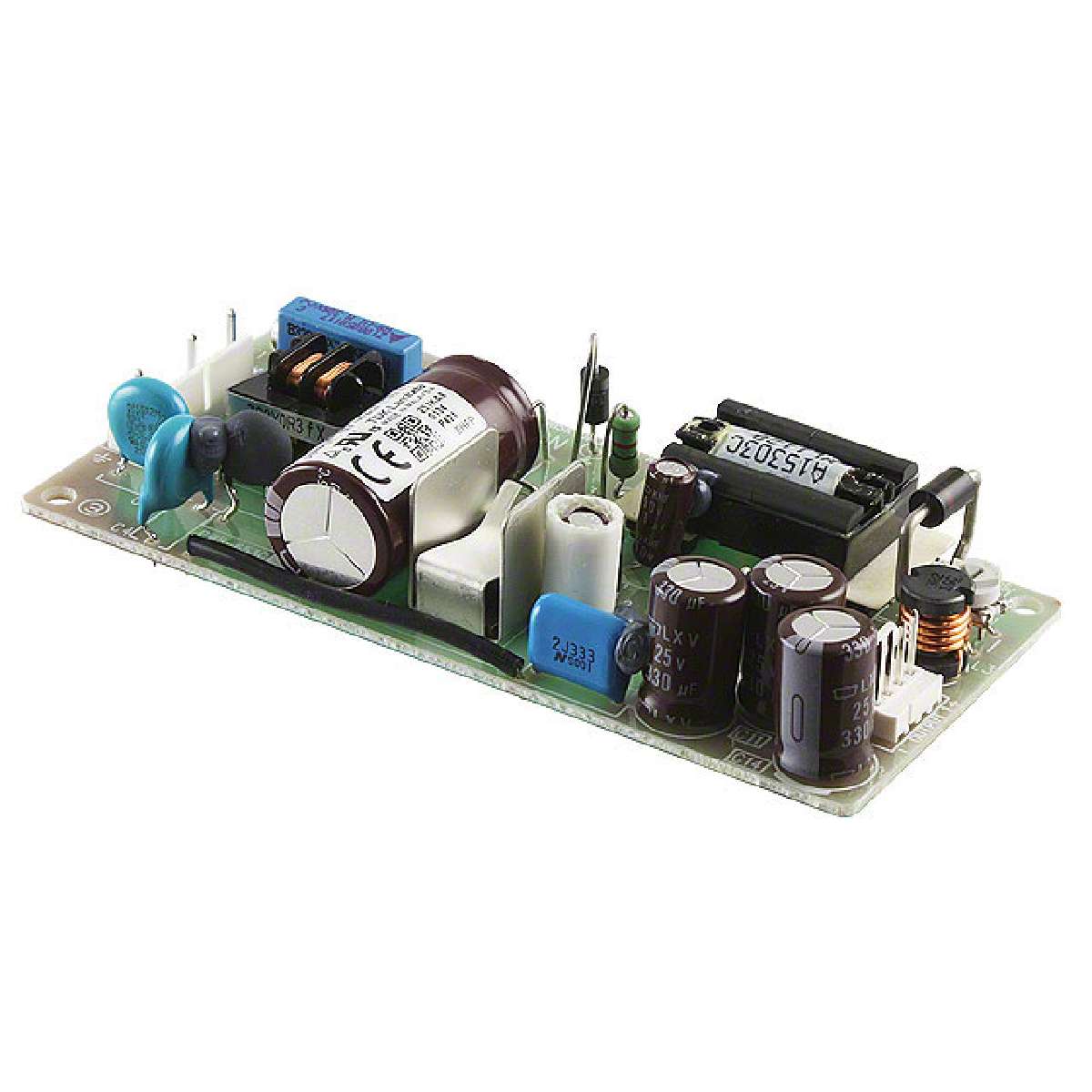

TDK LAMBDA ZWS10B15 交流-直流转换器, 开框, 1路输出, 10.5W, 15V, 700mA
开放框架 AC DC 转换器 输出 15V - - - 700mA 85 ~ 265 VAC 输入
得捷:
AC/DC CONVERTER 15V 10W
e络盟:
TDK LAMBDA ZWS10B15 交流-直流转换器, 开框, 1路输出, 10.5W, 15V, 700mA
艾睿:
Safely convert alternating currents into direct currents that your electronic devices can make use of with this ZWS10B-15 AC to DC power supply from TDK-Lambda. It has a voltage of 15 V and maximum output power of 10.5 W. This part&s;s single output can handle a current up to 0.7 A. This part has a minimum operating temperature of -10 °C and a maximum of 50 °C.
Verical:
AC/DC Power Supply Single-OUT 15V 0.7A 10.5W 9-Pin
额定功率 10 W
输出接口数 1
输出电压 15 V
输出电流 0.7 A
输出功率 10.5 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 700 mA
输入电流Min 0.18 A
输出功率Max 10.5 W
额定功率Max 10 W
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压AC 85V ~ 265V
输入电压 85VAC ~ 265VAC
安装方式 Panel
引脚数 9
长度 73.5 mm
宽度 50 mm
高度 22 mm
工作温度 -10℃ ~ 70℃
产品生命周期 Active
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
